LT-215AS + LT-110 A

-Application projects: commercial performances, wedding performances, entertainment bars, high-end conference halls, hotel banquet halls, auditoriums, etc.
Detailed description:

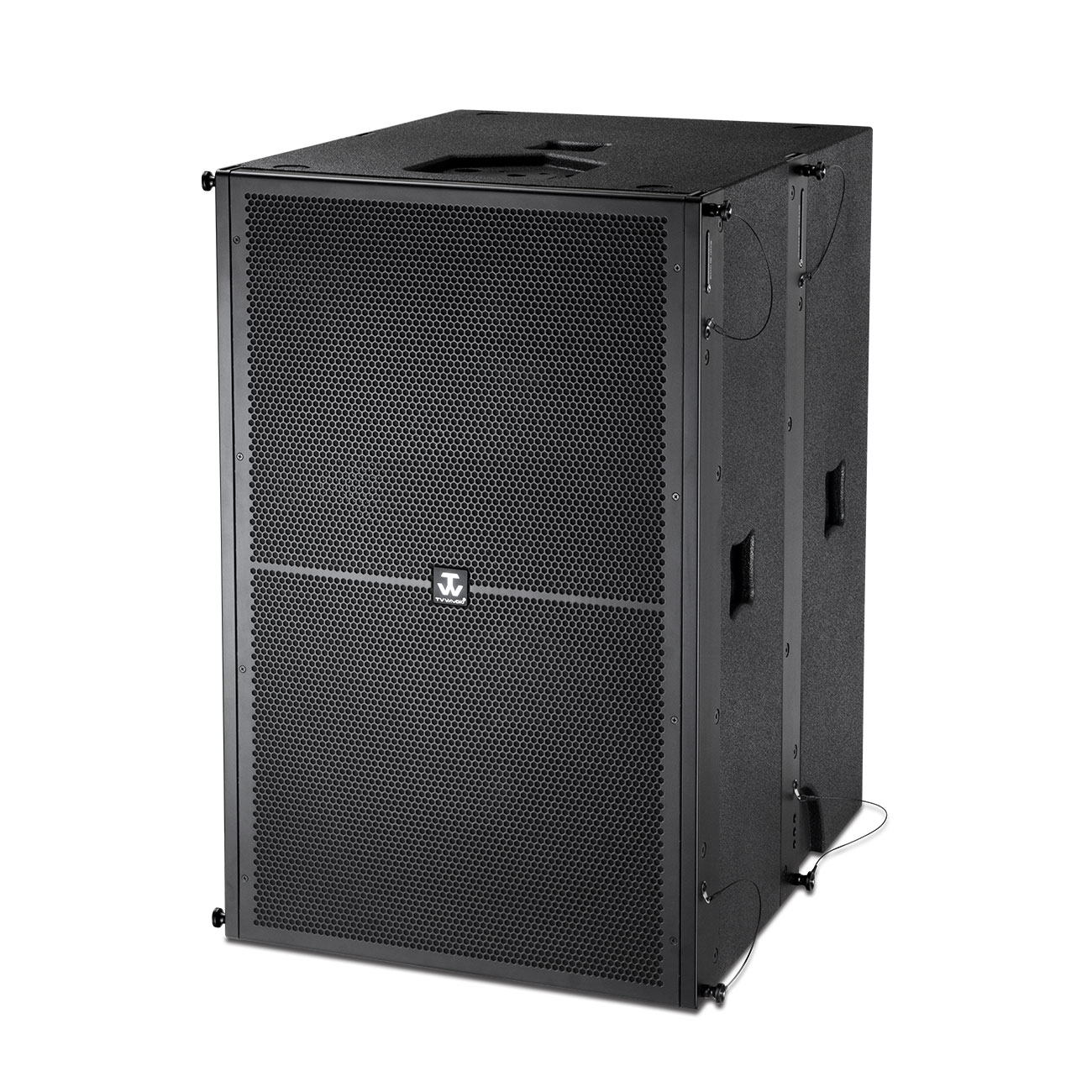

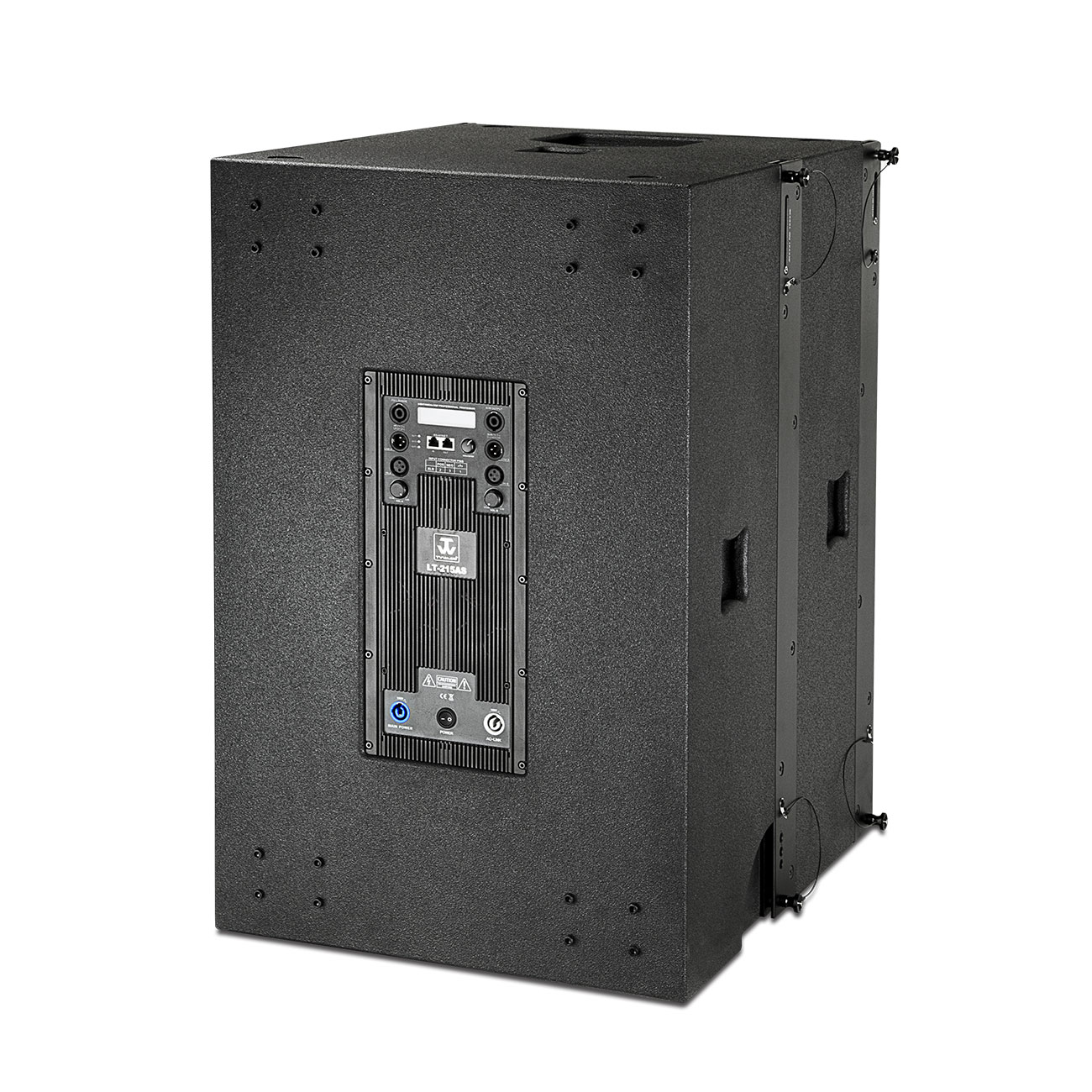

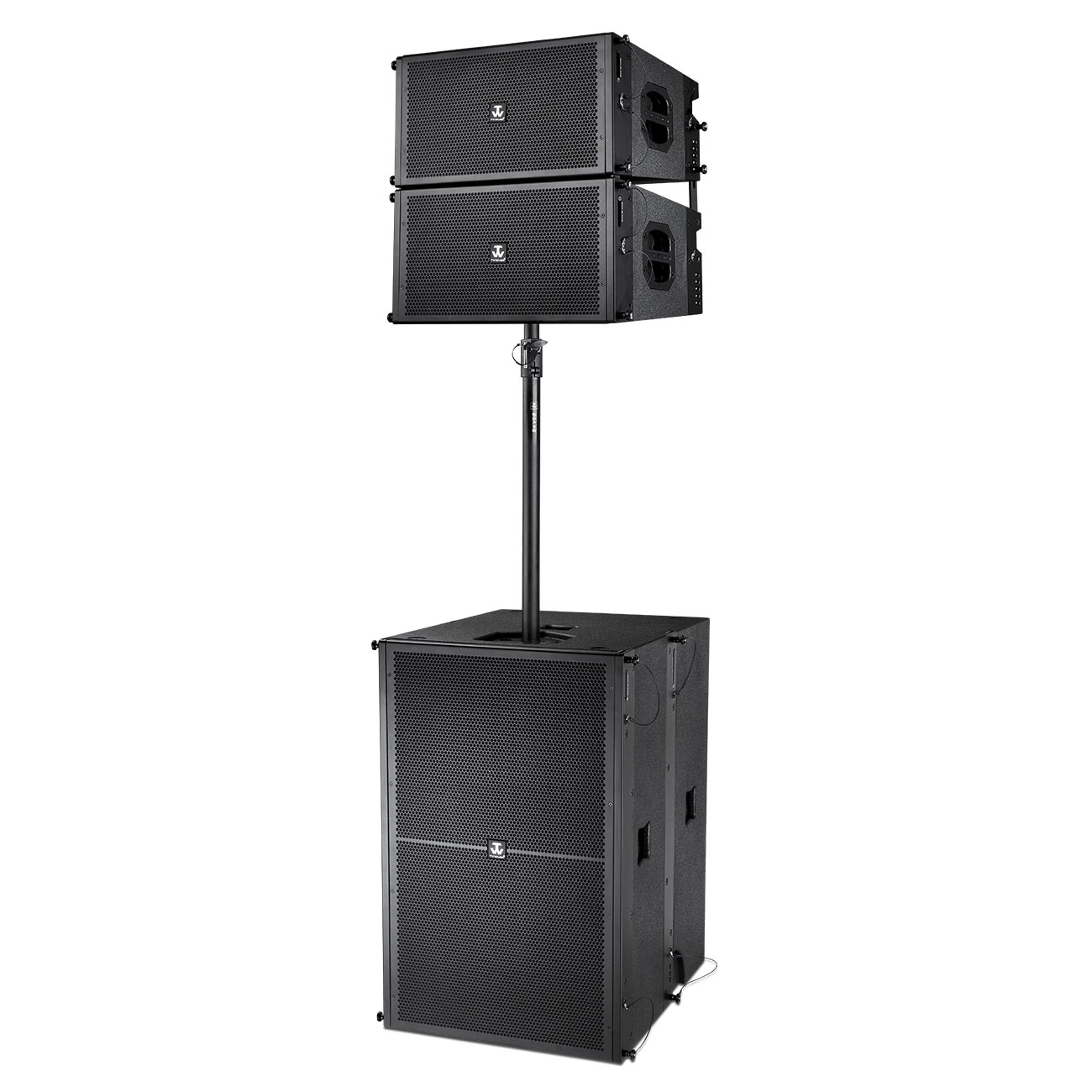

LT-215AS is a high-power three channel portable active dual fifteen subwoofer with DSP. It has a compact exterior structure and strong power, making it suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. Factory preset perfect parameters, equipped with professional customized aviation boxes, easy to transport and install, can be used with 2 LT-110 supports, or stacked with 4 LT-110, or hung together with 8 LT-110.

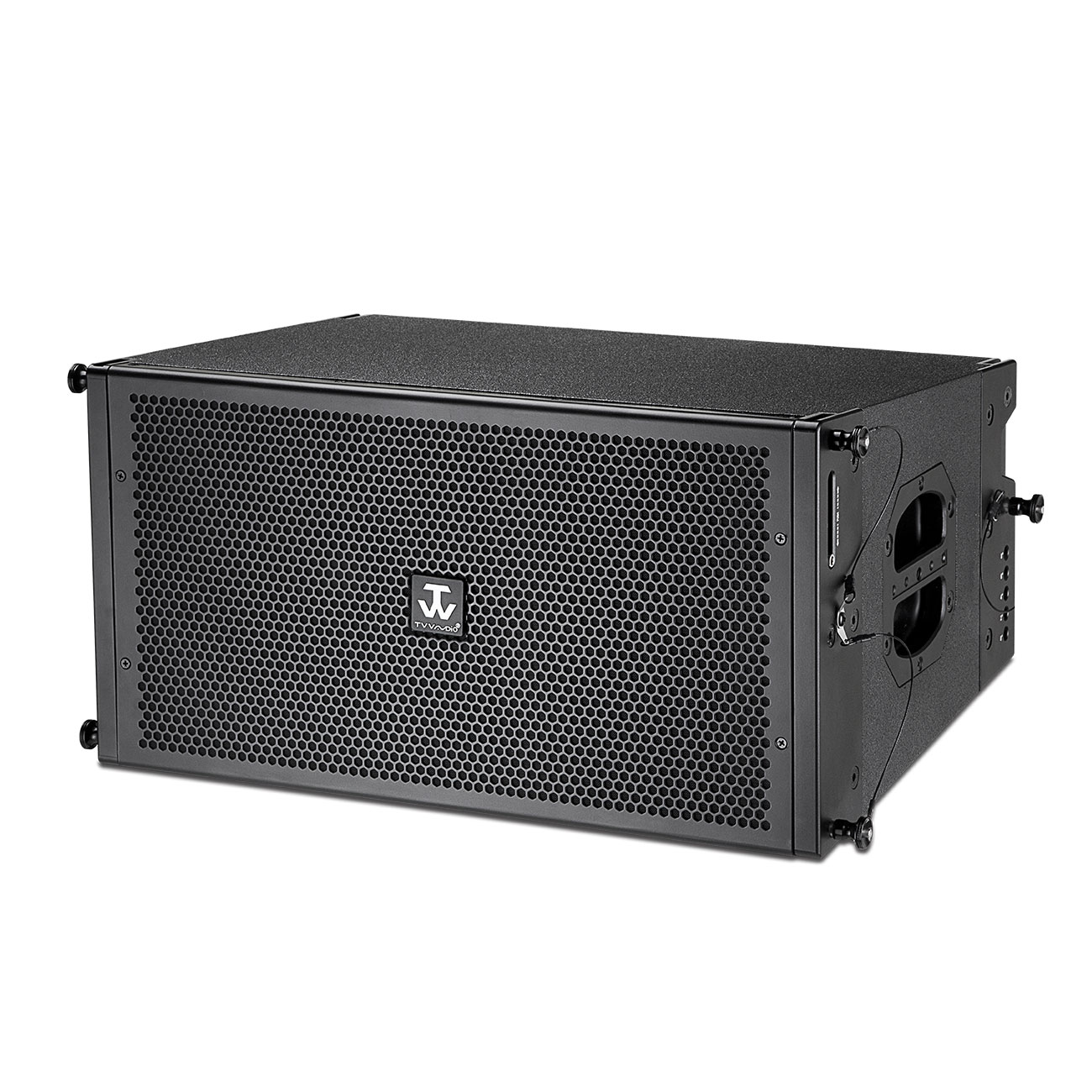

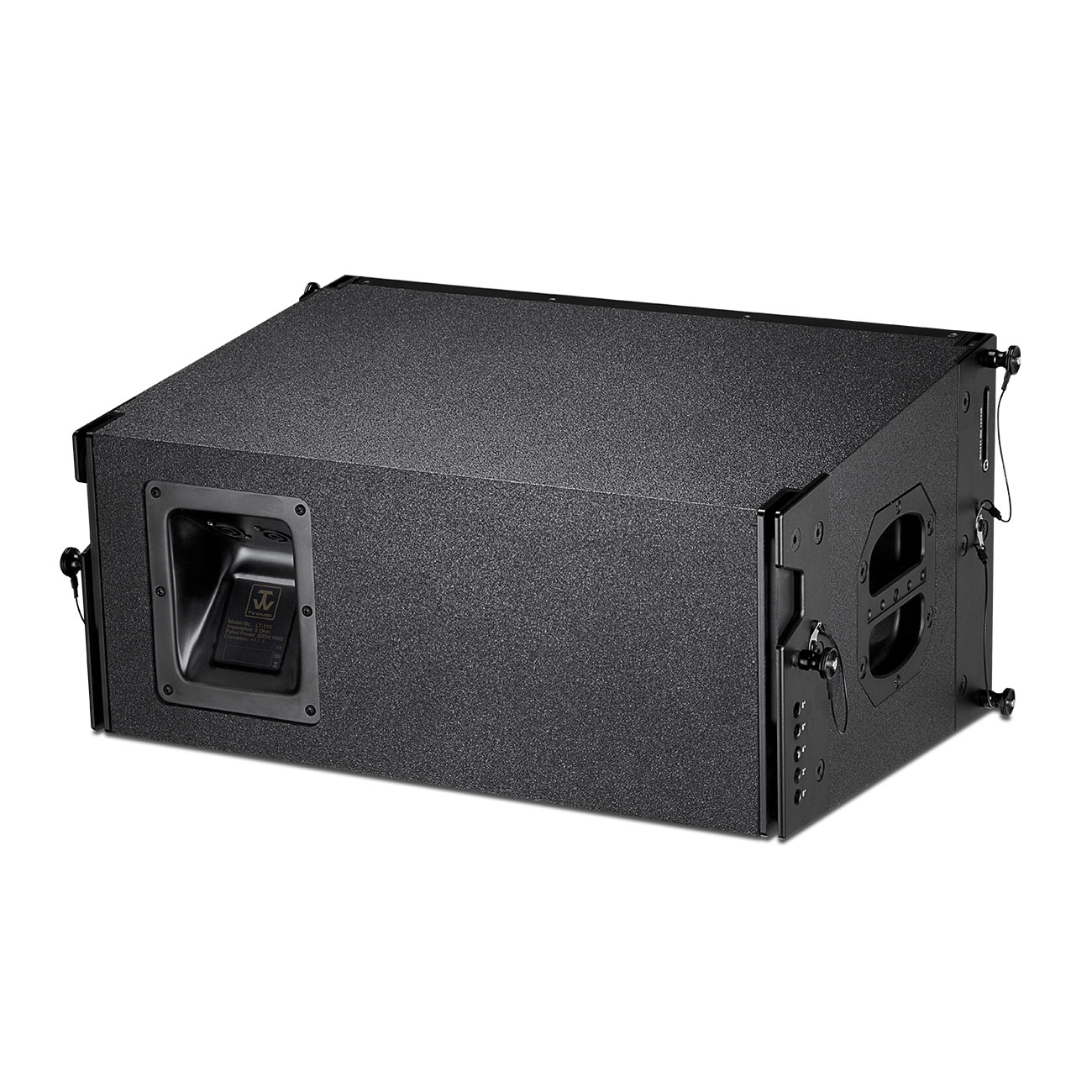

LT-110 is a compact high-power vertical linear array speaker that uses a low loss directional waveguide horn to form a 120 degree phase correspondence with the low frequency, allowing the concentrated transmission of mid to high frequency sound pressure to the farthest distance. The LT-110 linear speaker has clear sound, natural vocals, and strong mid-range penetration. Each box has an adjustable angle of 0-10 degrees between them, designed with a convenient hanging installation system, and can stack 2-4 boxes directly on top of the subwoofer for use. It can be paired with an active double fifteen subwoofer or a passive single eighteen subwoofer to meet the sound amplification needs of different performance activities. The installation method uses matching professional support frames, customized hangers, multiple stacking and customized hanging devices to meet the installation requirements of different places.


Product Parameters:

Model: LT-215AS


Technical Specifications


Rated Power: 1000W RMS


Peak Power Program: 2000W RMS


Unit configuration Component: LF 2 x 15 inches


Connection method: XLR IN/OUT


Sensitivity (1W @ 1M): 105dB


Maximum SPL: 132dB Peak @ 1M


Impedance: 4Ohm


Frequency Range: 30 Hz~250Hz


Color: Black or White


Net weight N. Weight: 87kgs


Box dimensions (W x D x H): 560 x 700 x 870mm


Packaging dimensions (W x D x H): 939 x 845 x 590mm


Amplifier Module Power: 1x 1200W+2x800W @ 8Ohm



Model: LT-110


Technical Specifications


Rated Power: 500W RMS


Peak Power Program: 1000W RMS


Unit configuration components: LF 1 x 10 inches+HF 2 x 1.7 inches Neo


Connection: 2 x Neutrik Speakon (4 Pins 1+1-)


Sensitivity (1W @ 1M): 99dB


Maximum SPL: 132dB Peak @ 1M


Impedance: 8Ohm


Frequency Range: 65 Hz~18 KHz


Horn Dispersion: H120 x V 10 Degree


Color: Black or White


Net weight N. Weight: 26kgs


Box dimensions (W x D x H): 560 x 400 x 298.5mm


Packaging dimensions (W x D x H): 475 x 365 x 655mm


Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm


Size & Specification:

Model: LT-110

Box dimensions (W x D x H): 560 x 400 x 298.5mm

Packaging dimensions (W x D x H): 475 x 365 x 655mm


Model: LT-215AS

Box dimensions (W x D x H): 560 x 700 x 870mm

Packaging dimensions (W x D x H): 939 x 845 x 590mm
