LT-215AS + LT-505 A

-Application project: Suitable for high-end conference rooms, multifunctional halls, auditoriums, hotel banquet halls and other occasions, with stage replay or lip filling function.
Detailed description:

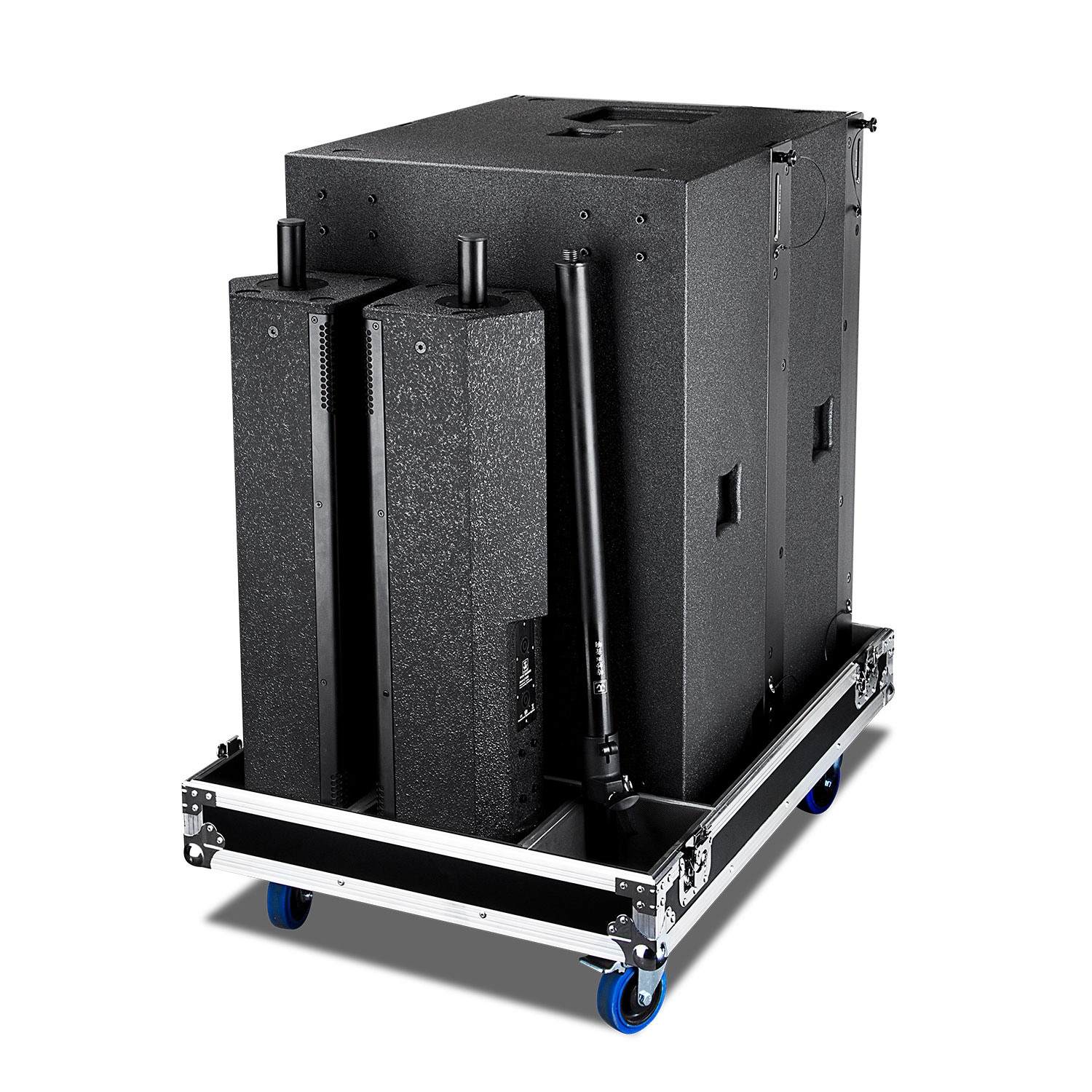

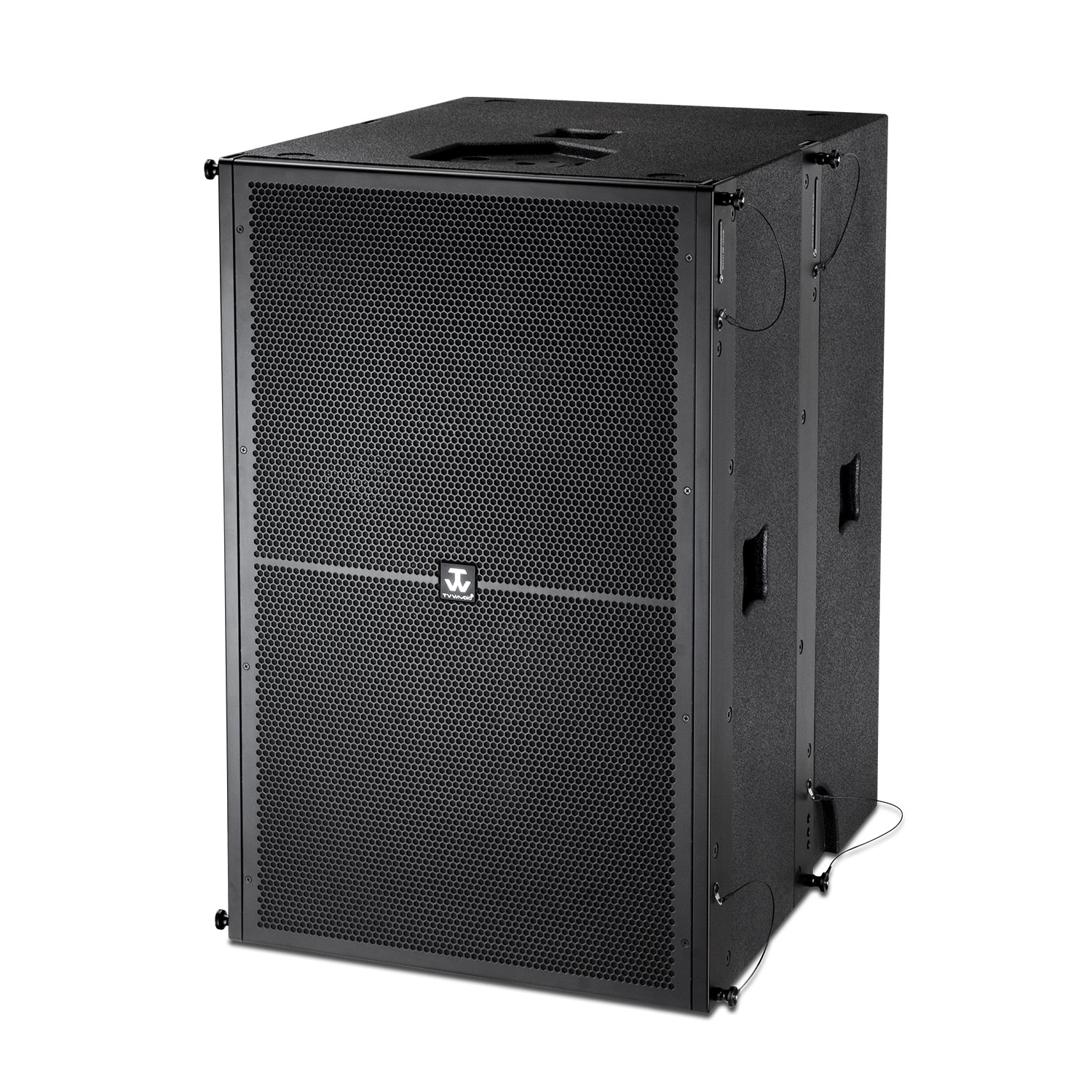

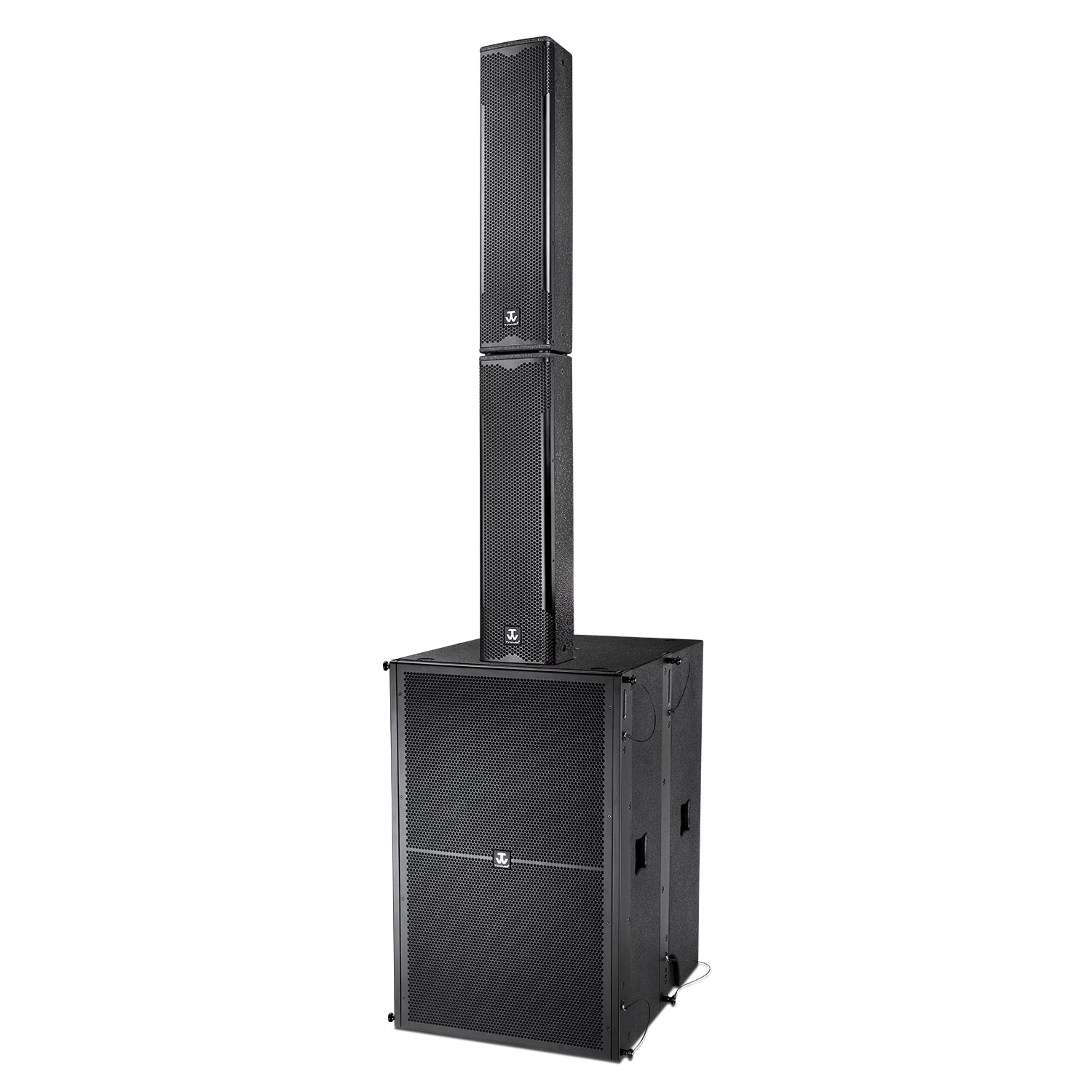

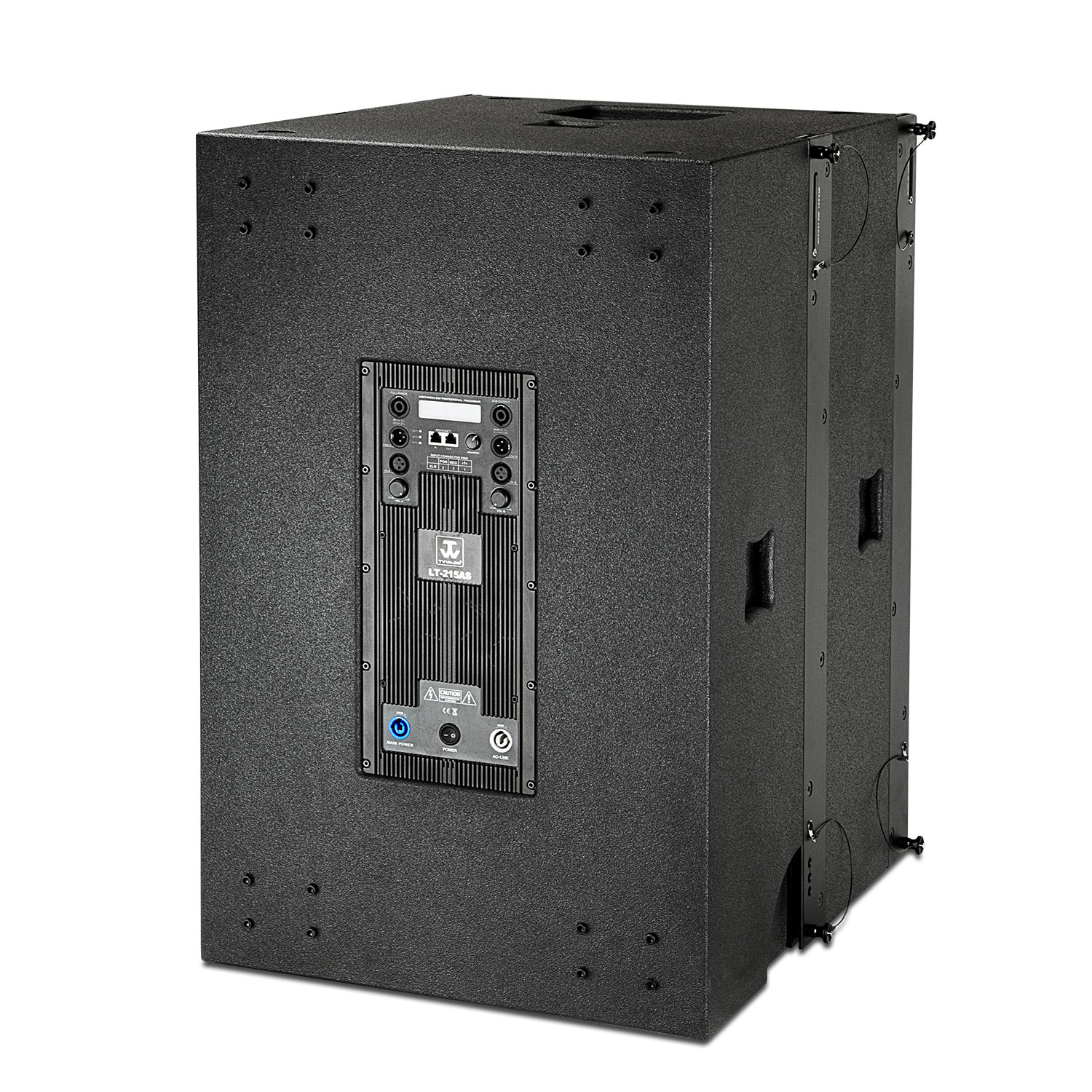

LT-215AS is a high-power three channel portable active dual fifteen subwoofer with DSP. It has a compact exterior structure and strong power, making it suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. Factory preset perfect parameters, equipped with professional customized aviation boxes, easy to transport and install, can be used with 2 LT-110 supports, or stacked with 4 LT-110, or hung together with 8 LT-110.

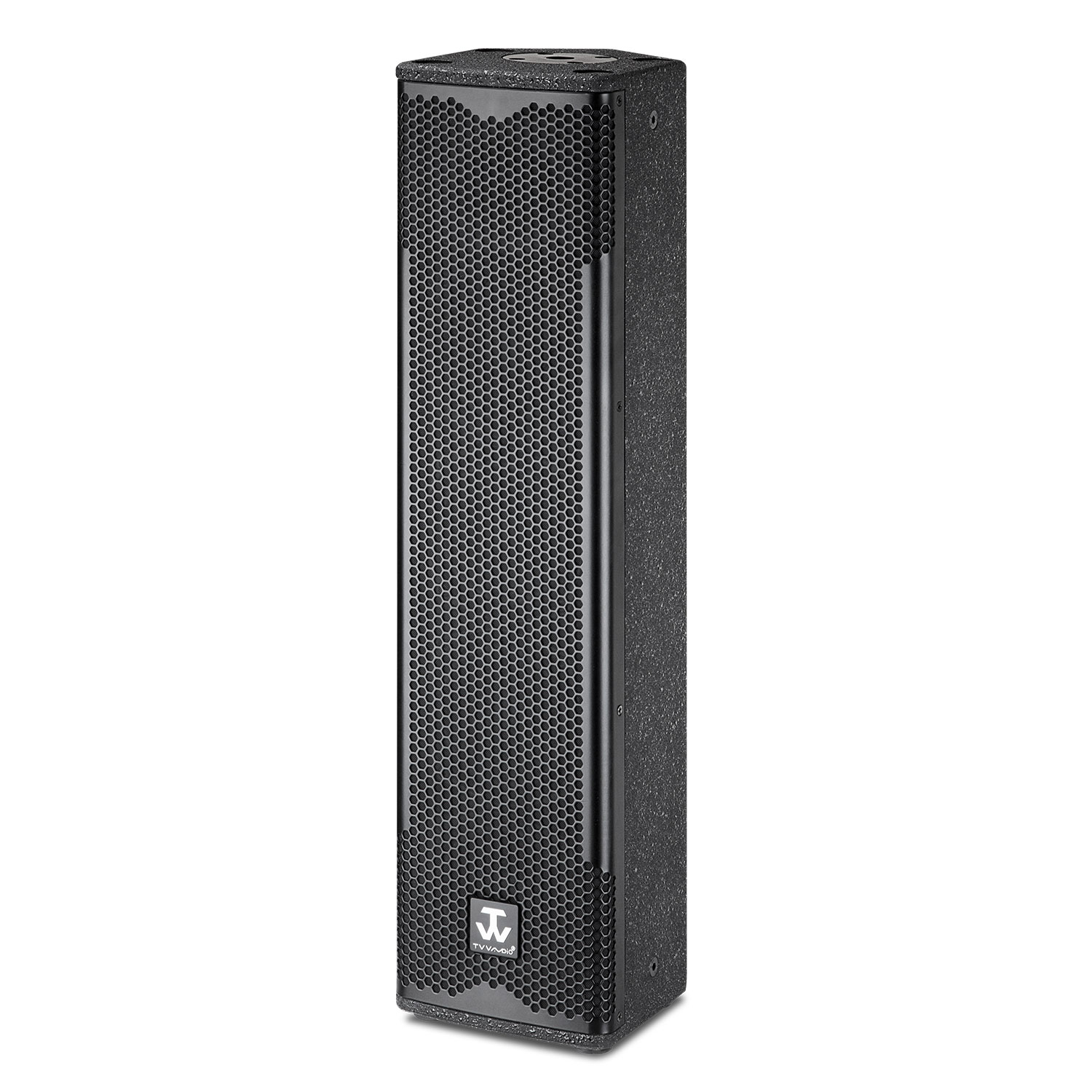

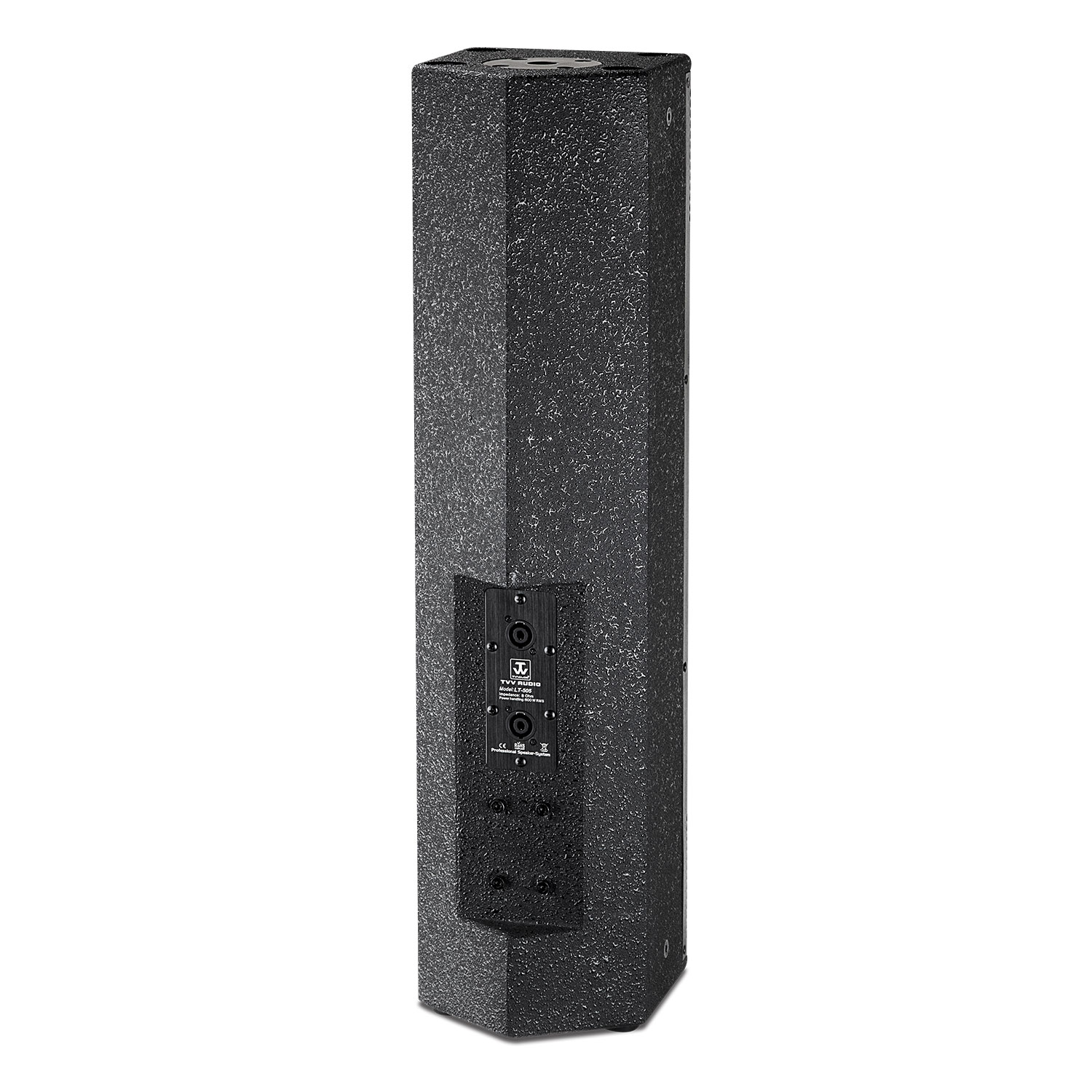

LT-505 is a high-performance professional grade line column system with a unique and compact appearance, realistic mid-range dynamics, easy and comfortable vocal effects, delicate and sweet high notes, reproducing classic scenes. It can be paired with an active single 18 inch subwoofer or an active double 15 subwoofer to meet the sound amplification needs of different performance activities. The installation method uses professional wall frames, 506 hangers, and standard hanging devices such as M8 sheep horn rings, which can be vertically or horizontally hung to meet the installation requirements of different places.


Product Parameters:

Model: LT-215AS


Technical Specifications


Rated Power: 1000W RMS


Peak Power Program: 2000W RMS


Unit configuration Component: LF 2 x 15 inches


Connection method: XLR IN/OUT


Sensitivity (1W @ 1M): 105dB


Maximum SPL: 132dB Peak @ 1M


Impedance: 4Ohm


Frequency Range: 30 Hz~250Hz


Color: Black or White


Net weight N. Weight: 87kgs


Box dimensions (W x D x H): 560 x 700 x 870mm


Packaging dimensions (W x D x H): 939 x 845 x 590mm


Amplifier Module Power: 1x 1200W+2x800W @ 8Ohm



Model: LT-505


Technical Specifications


Rated Power: 500W RMS


Peak Power Program: 1000W RMS


Unit configuration components: LF 4 x 5.5inch+HF 1 x 1.7inch


Connection: 2 x Neutrik Speakon (4 Pins 1+1-)


Sensitivity (1W @ 1M): 97dB


Maximum SPL: 128dB Peak @ 1M


Impedance: 8Ohm


Frequency Range: 70 Hz~18 KHz


Horn Dispersion: H90 x V 115 Degree


Color: Black or White


Net weight N. Weight: 13.8kgs


Box dimensions (W x D x H): 182 x 208.3 x 736mm


Packaging dimensions (W x D x H): 525 x 257 x 806mm [Air packed]


Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm


Size & Specification:

Model: LT-505

Box dimensions (W x D x H): 182 x 208.3 x 736mm

Packaging dimensions (W x D x H): 525 x 257 x 806mm [Air packed]


Model: LT-215AS

Box dimensions (W x D x H): 560 x 700 x 870mm

Packaging dimensions (W x D x H): 939 x 845 x 590mm
