LT-718A + LT-505 2

-Application projects: indoor and outdoor performances, bars, conference halls, hotel banquet halls, multifunctional halls, auditoriums, and other projects.
Detailed description:

LT-505 is a high-performance professional grade line column system with a unique and compact appearance, realistic mid-range dynamics, easy and comfortable vocal effects, delicate and sweet high notes, reproducing classic scenes. It can be paired with an active single 18 inch subwoofer or an active double 15 subwoofer to meet the sound amplification needs of different performance activities. The installation method uses professional wall frames, 506 hangers, and standard hanging devices such as M8 sheep horn rings, which can be vertically or horizontally hung to meet the installation requirements of different places.

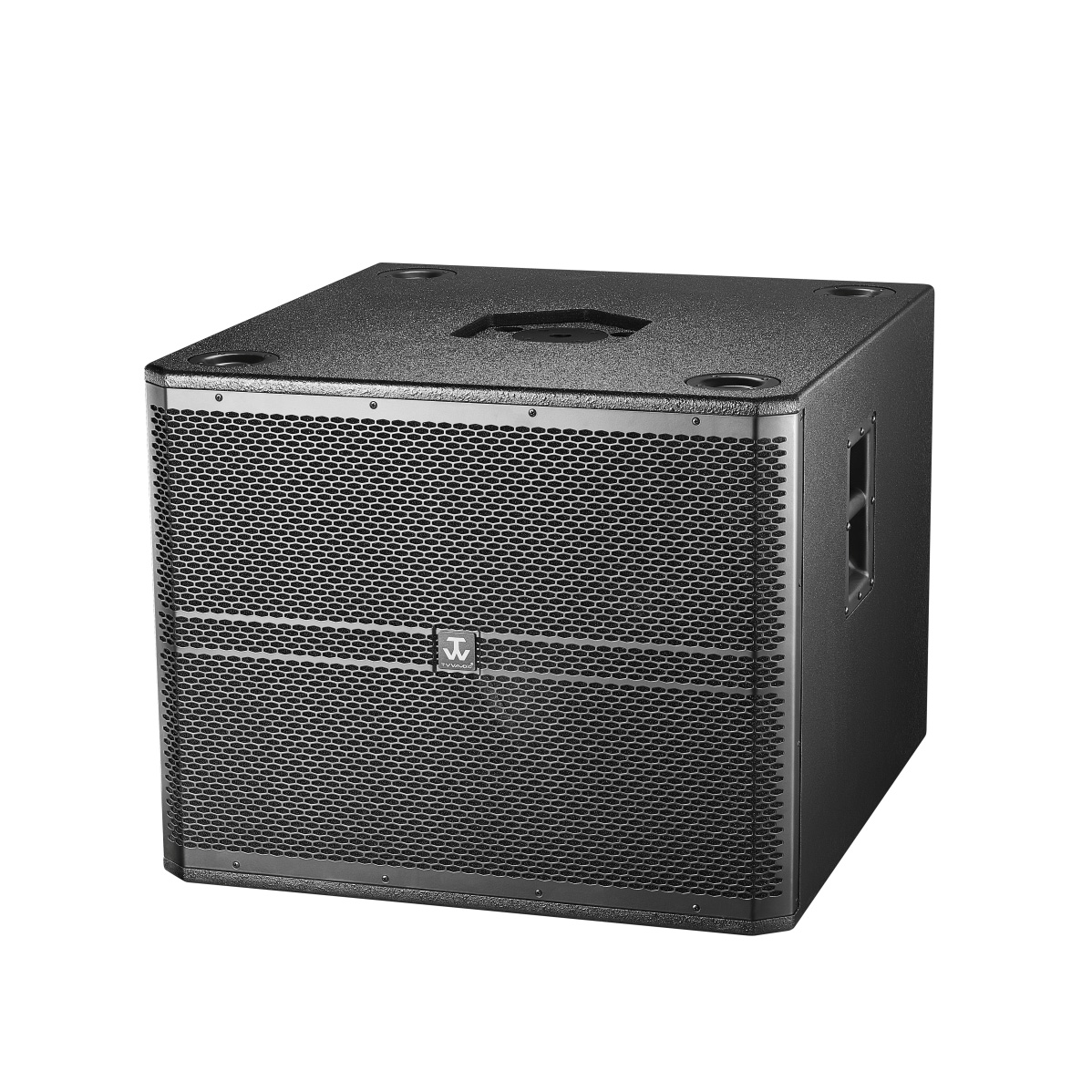

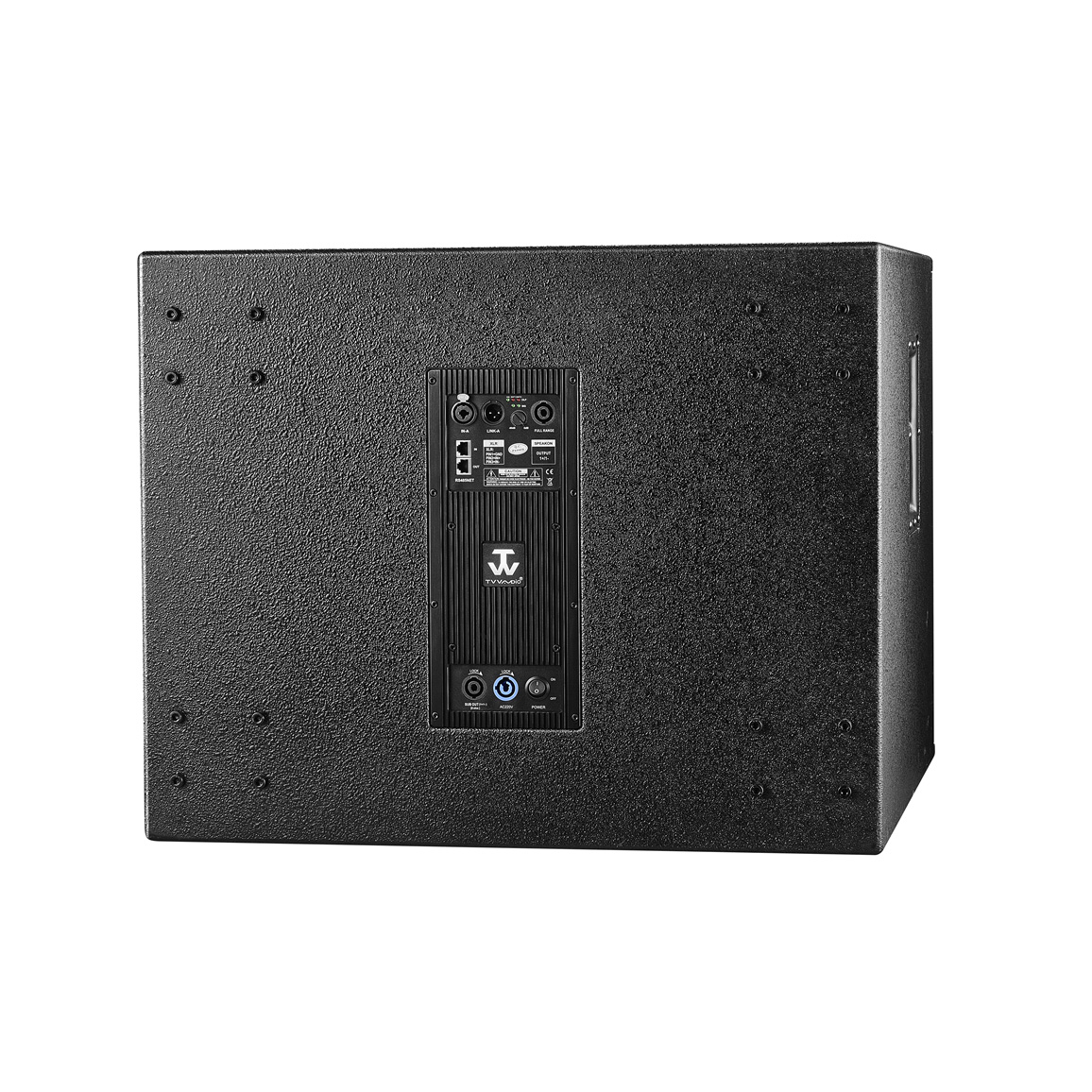

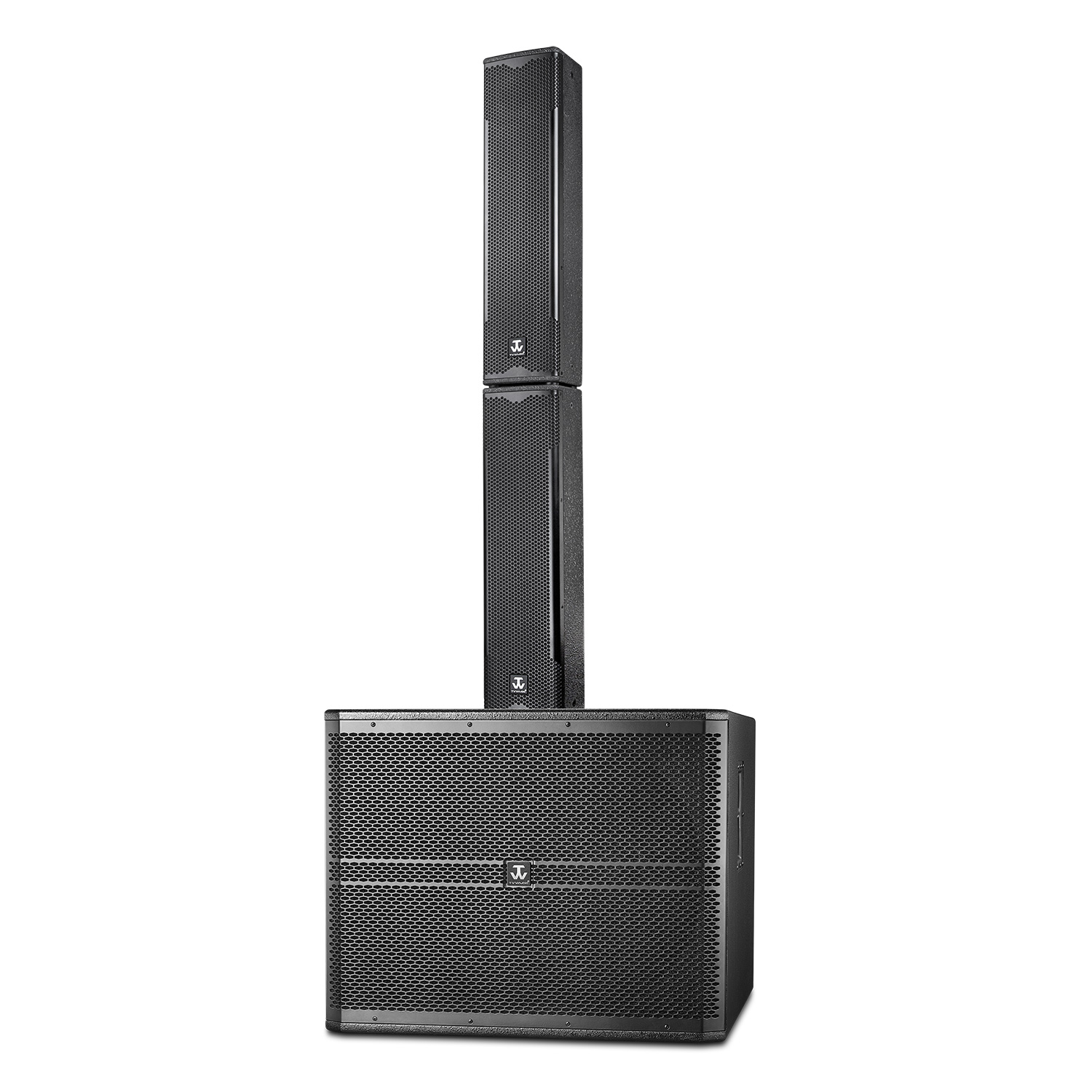

LT-718A is a horn loading single 18 inch active high-power subwoofer with a compact exterior structure and strong power, suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. The installation method can be customized with professional hanging devices, which can be stacked 1-2 times with LT-505, or supported by branches for use. Alternatively, it can be used in conjunction with the LT-718 passive subwoofer. One LT-718A can be used with one LT-718 passive subwoofer and two LT-505s.


Product Parameters:

Model: LT-505


Technical Specifications


Rated Power: 500W RMS


Peak Power Program: 1000W RMS


Unit configuration components: LF 4 x 5.5inch+HF 1 x 1.7inch


Connection: 2 x Neutrik Speakon (4 Pins 1+1-)


Sensitivity (1W @ 1M): 97dB


Maximum SPL: 128dB Peak @ 1M


Impedance: 8Ohm


Frequency Range: 70 Hz~18 KHz


Horn Dispersion: H90 x V 115 Degree


Color: Black or White


Net weight N. Weight: 13.8kgs


Box dimensions (W x D x H): 182 x 208.3 x 736mm


Packaging dimensions (W x D x H): 525 x 257 x 806mm [Air packed]


Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm



Model: LT-718A


Technical Specifications


Rated Power: 700W RMS


Peak Power Program: 1400W RMS


Unit configuration Component: LF 1 x 18inch


Connection method: XLR IN/OUT


Sensitivity (1W @ 1M): 98dB


Maximum SPL: 129dB Peak @ 1M


Impedance: 8Ohm


Frequency Range: 35 Hz~250Hz


Color: Black or White


Net weight N. Weight: 59.5kgs


Box dimensions (W x D x H): 700 x 740 x 560mm


Packaging dimensions (W x D x H): 815 x 775 x 630mm


Amplifier Module Power: 2x800W @ 8Ohm


Size & Specification:

Model: LT-505

Box dimensions (W x D x H): 182 x 208.3 x 736mm

Packaging dimensions (W x D x H): 525 x 257 x 806mm [Air packed]


LT-718A

Box dimensions (W x D x H): 700 x 740 x 560mm

Packaging dimensions (W x D x H): 815 x 775 x 630mmProject application information
