LT-715A + RT-403

-Application projects: indoor and outdoor performances, bars, conference halls, hotel banquet halls, multifunctional halls, auditoriums, and other projects.
Detailed description:

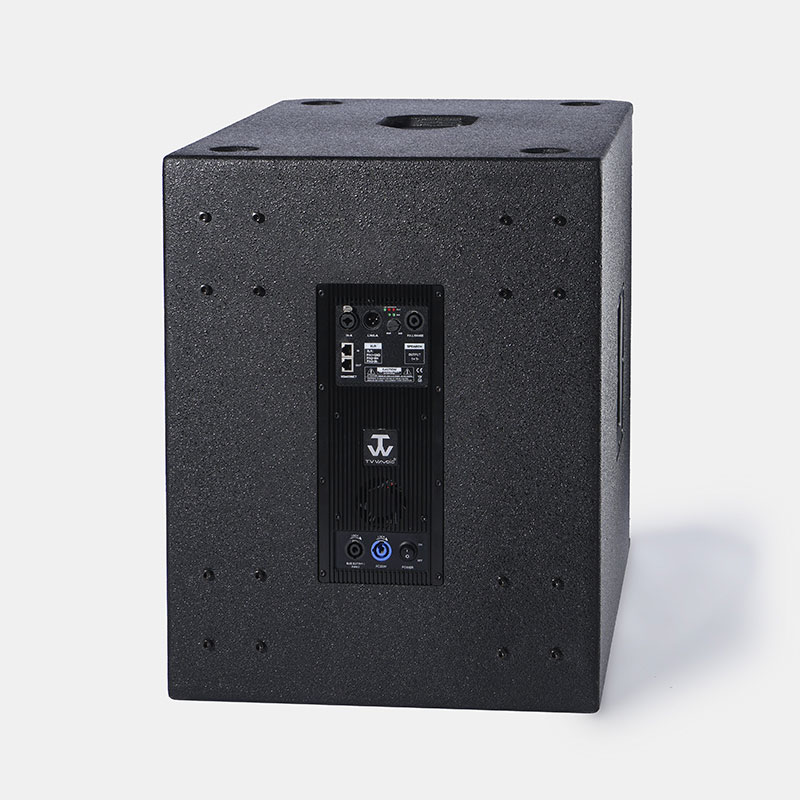

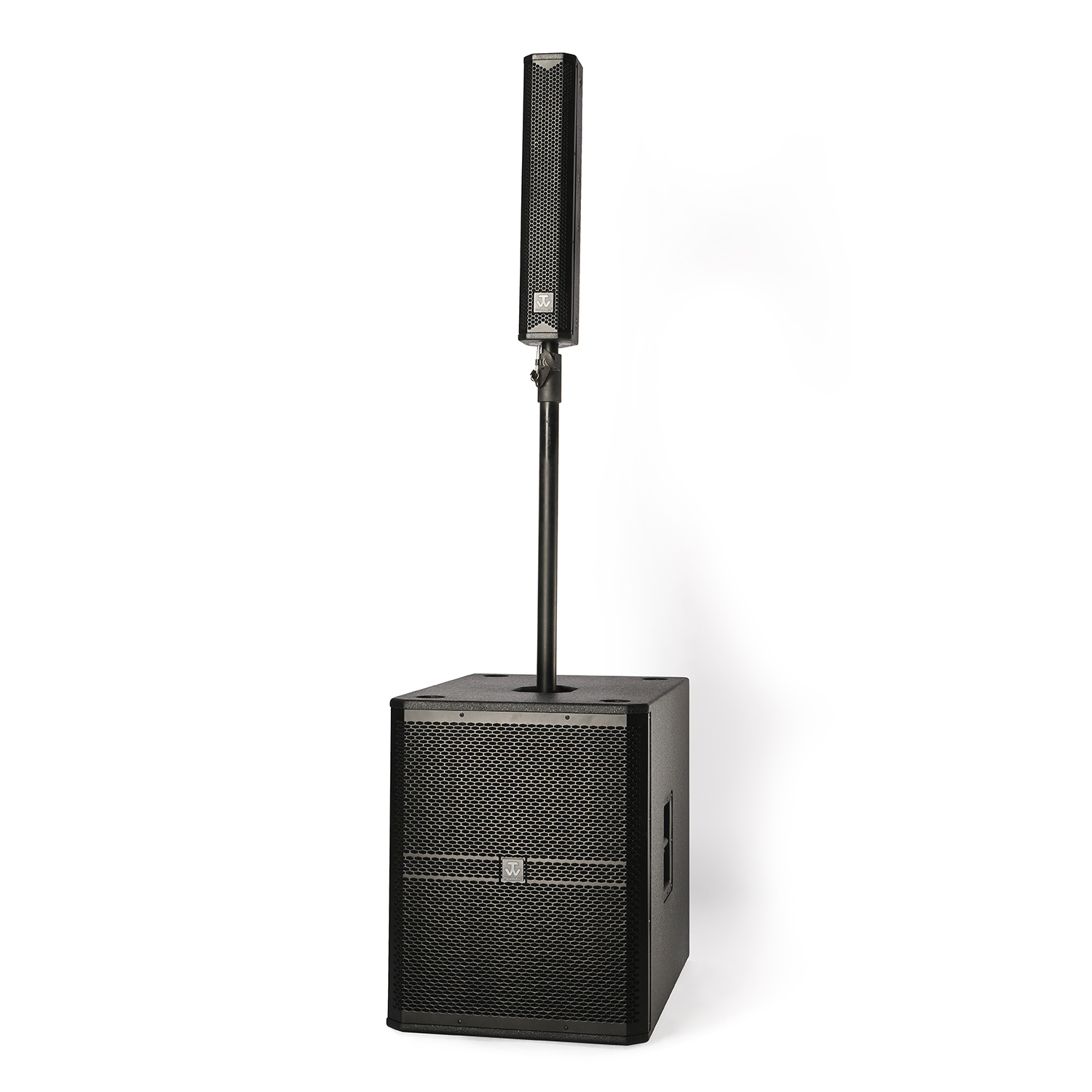

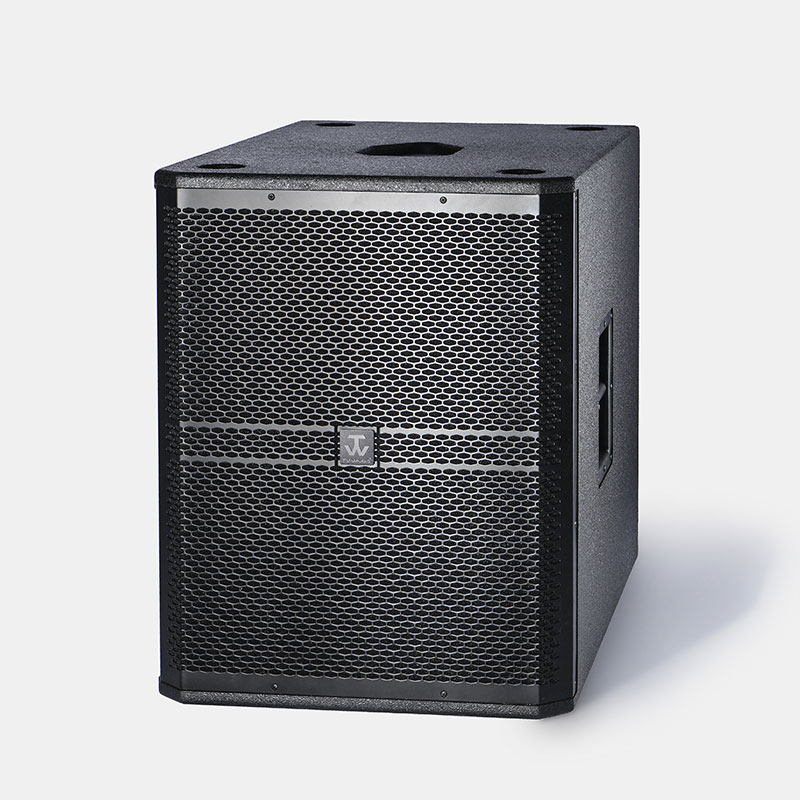

LT-715A is a single fifteen inch active high-power subwoofer with a compact exterior structure and strong power, suitable for occasions with high sound amplification requirements. Its dynamic effect is full and soft, with full low-frequency and strong surround feeling, which can stretch and expand its expressive power. The installation method can be customized with professional hanging devices, which can be stacked 1-2 times with RT-803 or RT-403, or supported by branches for use. Alternatively, it can be used in conjunction with the LT-715 passive subwoofer. One LT-715A can be used with one LT-715 passive subwoofer and two RT-803 or RT-403.

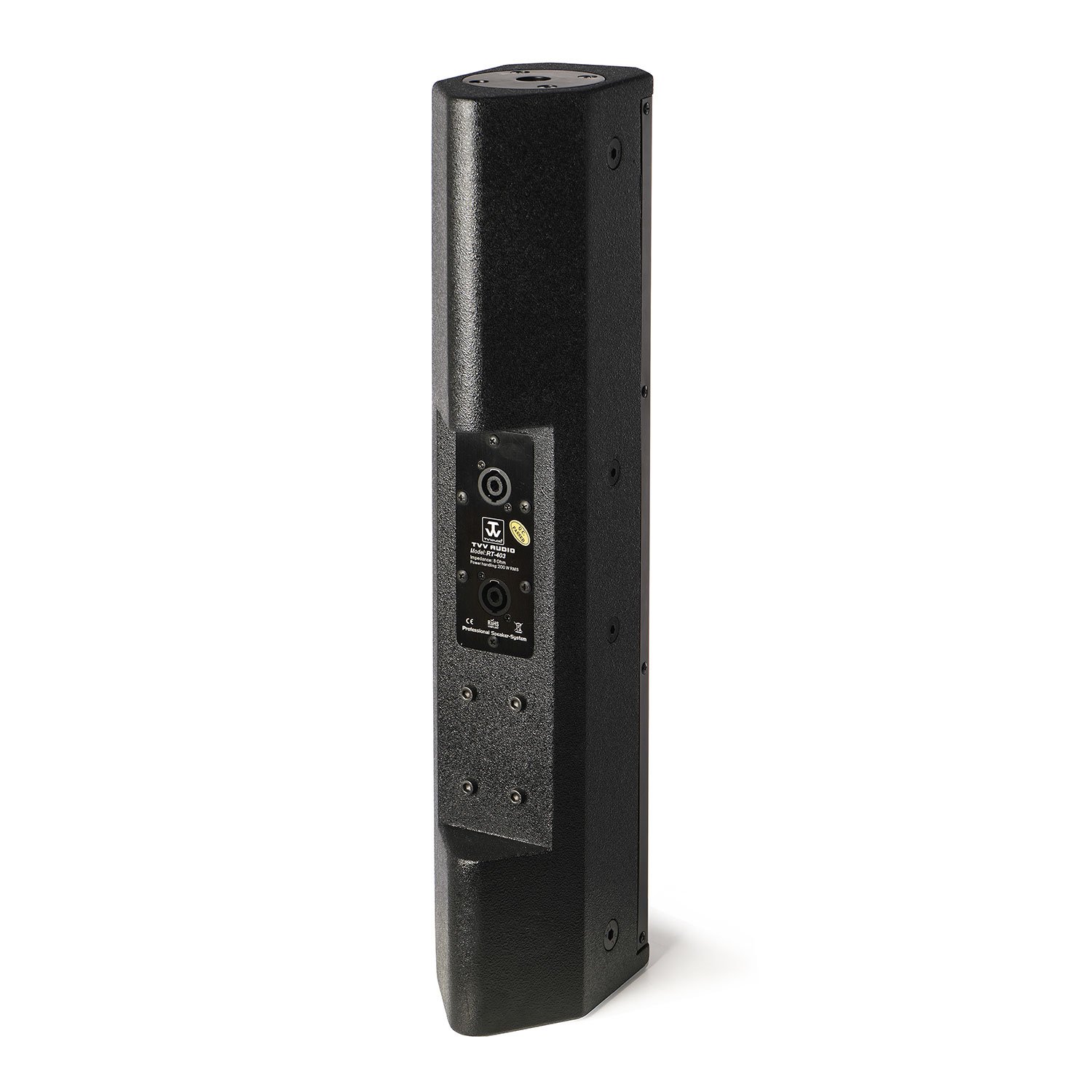

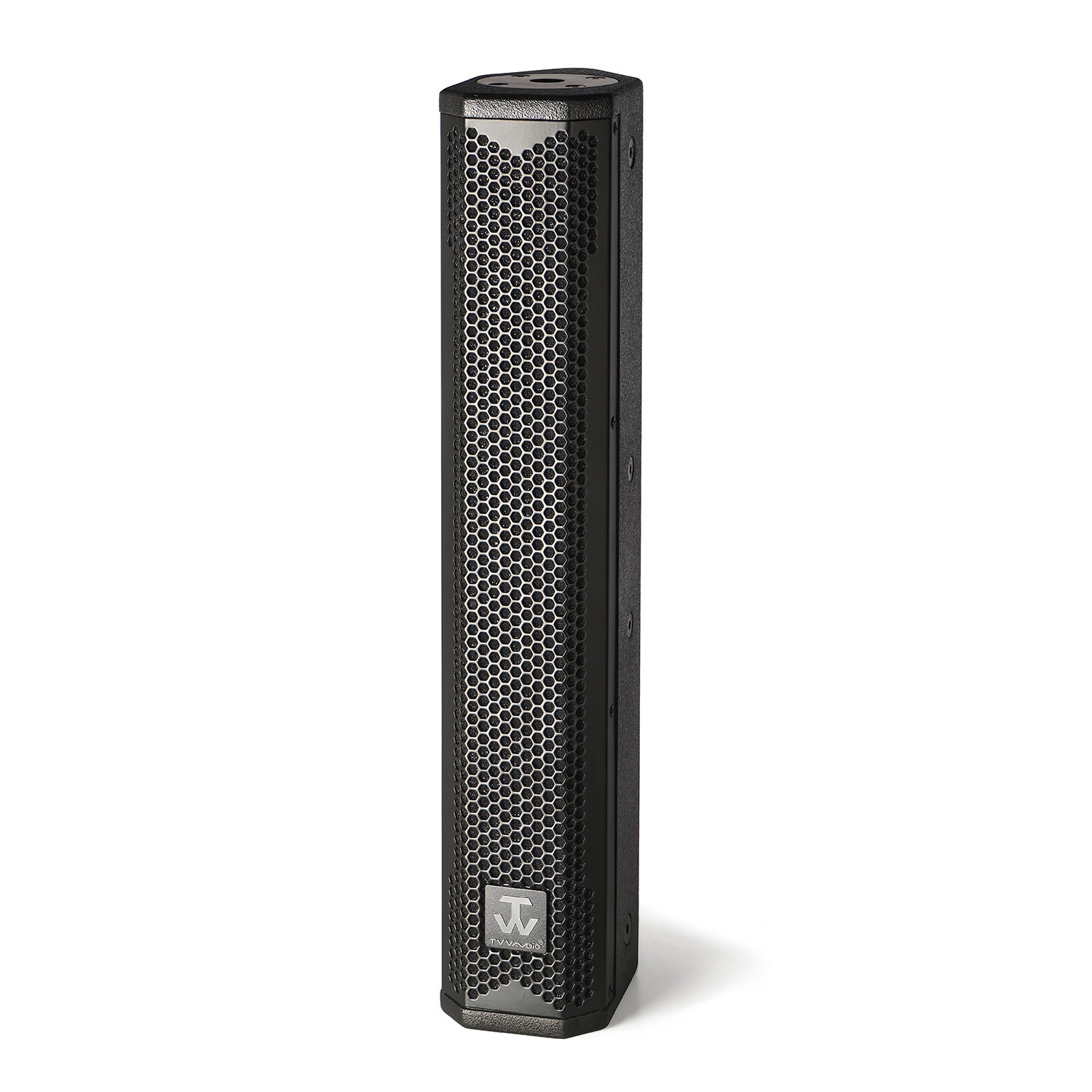

RT-403 is a high-performance five unit professional line column system with a stylish appearance and a compact and unique design. The mid-range dynamic effect of the speaker is easy and effortless, with delicate and sweet high notes, reproducing classic scenes. It can be paired with an active single 15 inch subwoofer LT-715A or an active single 12 inch subwoofer LT-712A to meet the sound amplification needs of different performance activities. The installation method uses standard hanging devices such as professional wall frames, 506 hangers, L-shaped frames, and M8 sheep horn rings, which can meet the installation requirements of different places.


Product Parameters:

Model: LT-715A


Technical Specifications


Rated Power: 500W RMS


Peak Power Program: 1000W RMS


Unit configuration Component: LF 1 x 15 inches


Connection method: XLR IN/OUT


Sensitivity (1W @ 1M): 97dB


Maximum SPL: 128dB Peak @ 1M


Impedance: 8Ohm


Frequency Range: 35 Hz~250Hz


Color: Black or White


Net weight N. Weight: 49kgs


Box dimensions (W x D x H): 497 x 700 x 614mm


Packaging dimensions (W x D x H): 775 x 572 x 684mm


Amplifier Module Power: 2x800W @ 8Ohm



Model: RT-403


Technical Specifications


Rated Power: 200W RMS


Peak Power Program: 400W RMS


Unit configuration components: LF 4 x 3 inches+HF 1 x 1 inch


Connection: 2 x Neutrik Speakon (4 Pins 1+1-)


Sensitivity (1W @ 1M): 89dB


Maximum SPL: 119dB Peak @ 1M


Impedance: 8Ohm


Frequency Range: 100 Hz~18 KHz


Horn Dispersion: H90 x V 115 Degree


Color: Black or White


Net weight N. Weight: 5.9kgs


Box dimensions (W x D x H): 110 x 170 x 585mm


Packaging dimensions (W x D x H): 325 x 245 x 655mm [Air packed]


Combined with amplifier power Rec. Amplifier Power: 450~650W 8Ohm


Size & Specification:

LT-715A

Box dimensions (W x D x H): 497 x 700 x 614mm

Packaging dimensions (W x D x H): 775 x 572 x 684mm


Model: RT-403

Box dimensions (W x D x H): 110 x 170 x 585mm

Packaging dimensions (W x D x H): 325 x 245 x 655mm [Air packed]
