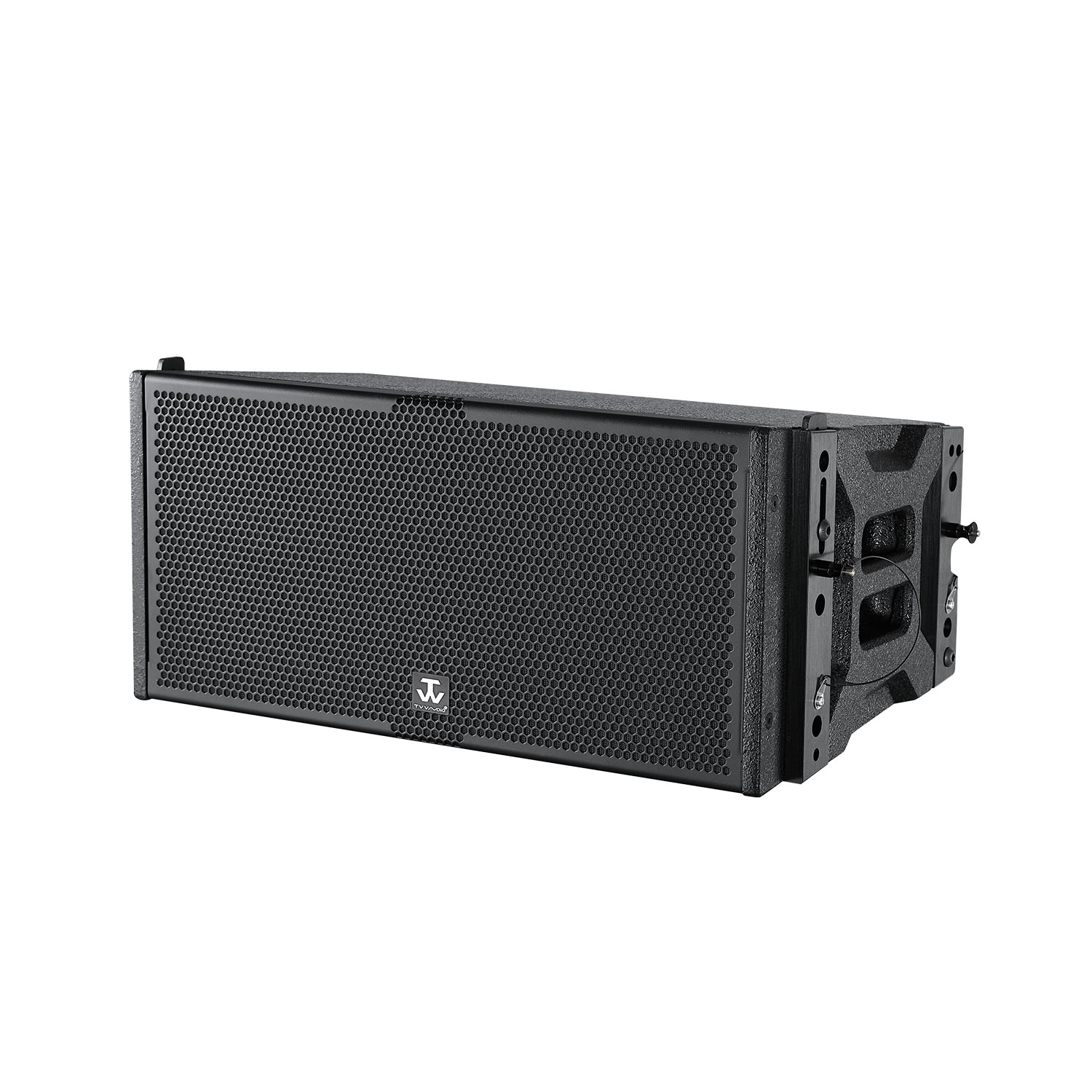

LT-210F
Detailed description:

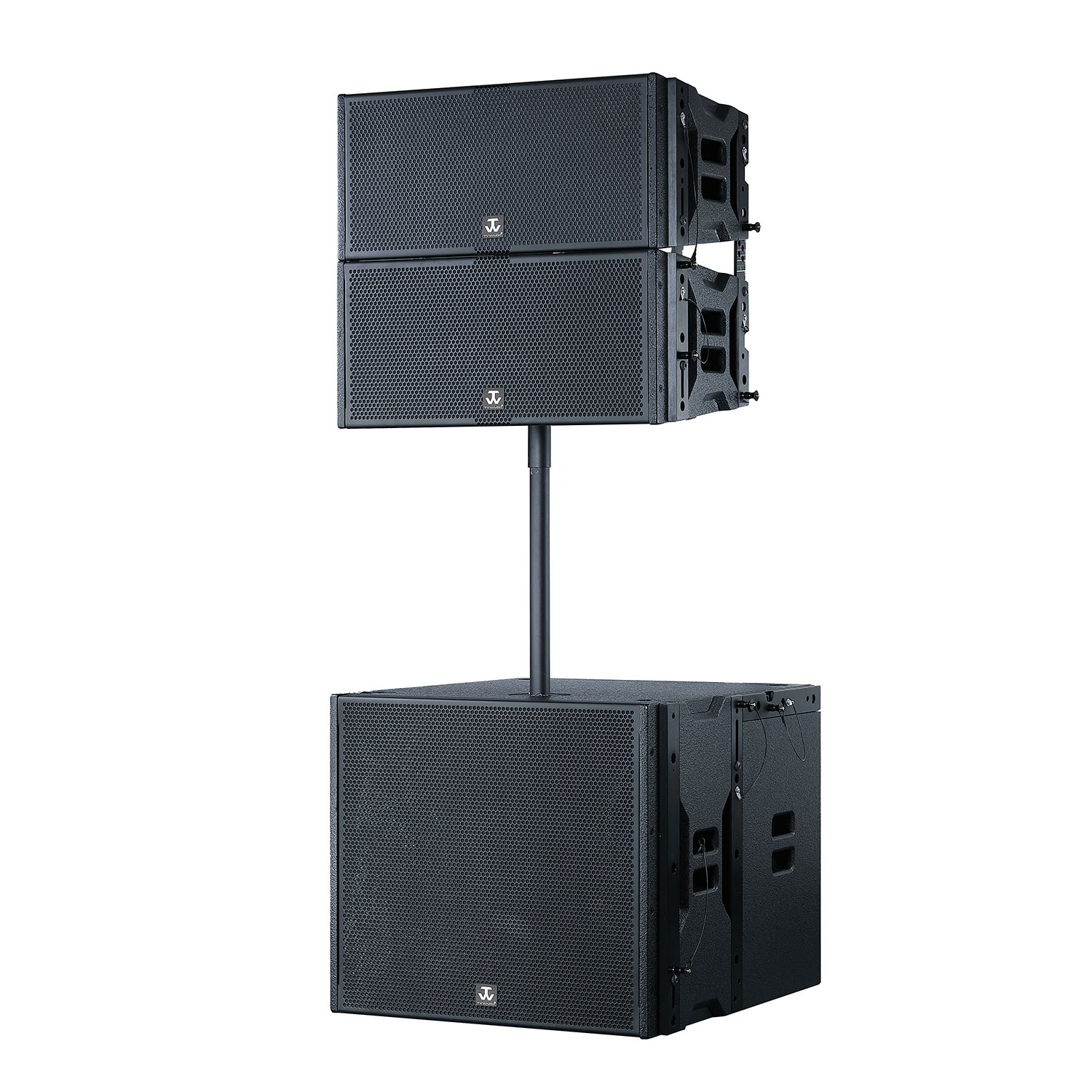

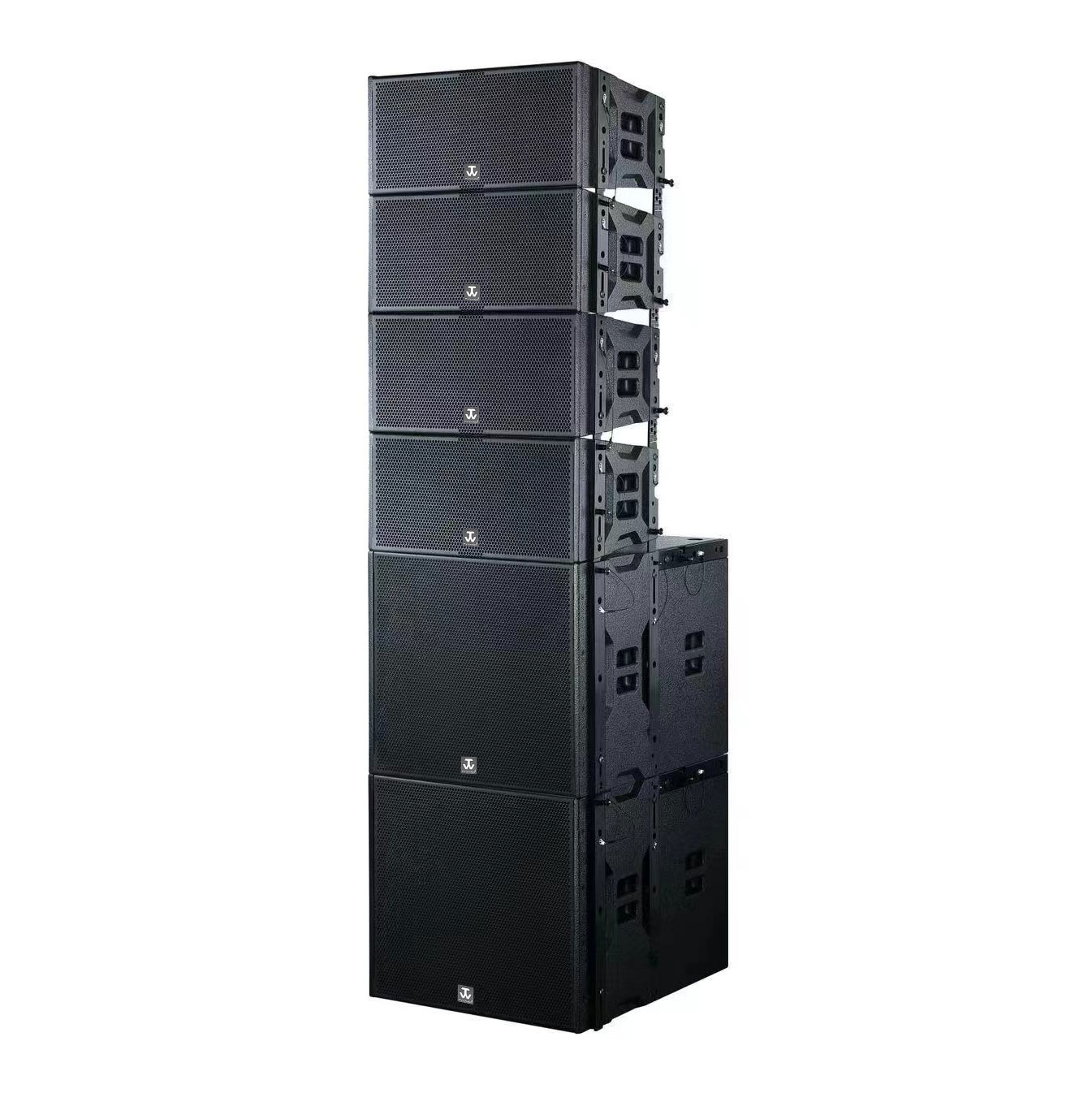

The LT-210F is a dual ten inch passive compact high-power vertical linear array speaker that uses full network coverage, which is different from the cover design of the LT-210V. Design and match a low loss directional waveguide horn that forms a 120 degree phase with the low frequency, allowing the concentrated transmission of mid to high frequency sound pressure to the farthest distance. High pitched clarity, natural vocals, and strong mid-range penetration. Each box has an adjustable angle of 0-10 degrees between them, designed with a convenient hanging installation system, and can stack 2-4 boxes directly on top of the subwoofer for use. It can be used together with an active single eighteen subwoofer to meet the sound amplification needs of different performance activities.
Product Parameters:
Technical Specifications
Rated Power: 650W RMS
Peak Power Program: 1300W RMS
Unit configuration Component: LF 2 x 10 inches 156mm magnet 65mm VC+HF 2x1.3“
Connection: XLR IN/OUT vs 2 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 97dB
Maximum SPL: 125dB Peak @ 1M
Impedance: 8Ohm
Frequency Range: 65 Hz~20 KHz
Horn Dispersion: V 90 x H 15 Degree
Color: Black or White
Net weight N. Weight: 25kgs
Box dimensions (W x D x H): 650 x 350 x 290mm
Packaging dimensions (W x D x H): 360x420x710mm
Combined with amplifier power Rec. Amplifier Power: 2x800W @ 8Ohm
Size & Specification:
Box dimensions (W x D x H): 650 x 350 x 290mm
Packaging dimensions (W x D x H): 360x420x710mm
Project Applications:
Project application information
