CT-315
Detailed description:

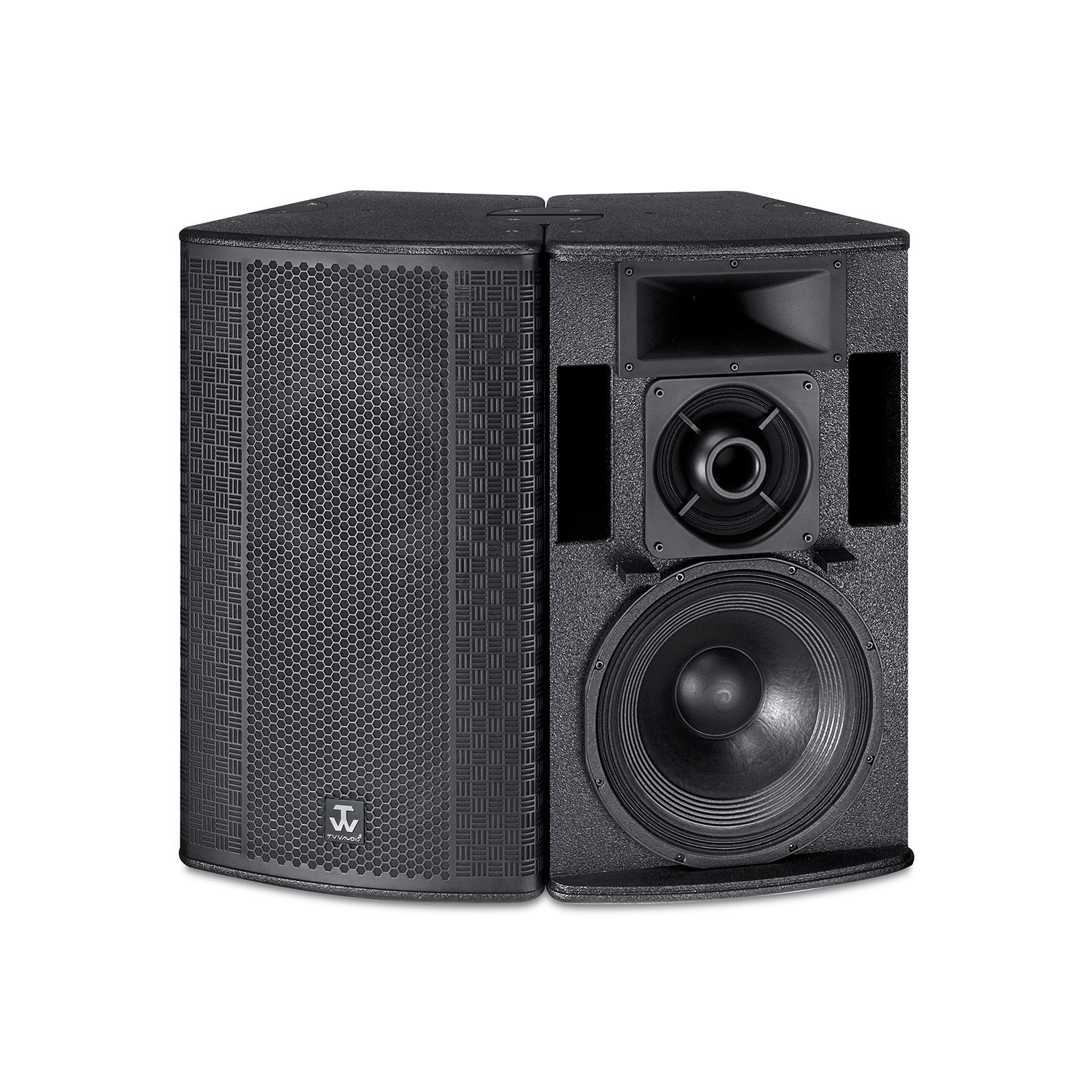

CT-315 is a highly efficient and high-performance fifteen inch three minute frequency entertainment engineering speaker. The 15 inch bass unit adopts imported paper basin and special adhesive treatment, with good low-frequency extension and elasticity, and the sound reproduction is true, natural and clean; The eight inch midrange, combined with a uniquely designed midrange phase plug, highlights the mid-range energy and brings the vocals closer to the front. The neodymium magnetic 44 core treble also enhances the depth of the sound and broadens the range of the sound field. The entire speaker system can withstand a maximum input power of 1600W and provide uniform coverage at 60 ° x 30 ° angles.
CT-315 application projects: Party rooms, Hi rooms, Slow Shake bars, DISCO halls, Performance bars, Music halls, theaters, Lecture halls, and other occasions.
Product Parameters:
Model: CT-315
Rated Power: 800W RMS
Peak Power Program: 1600W RMS
Unit configuration components: LF 1x15 inch+MID 1x8 inch+HF 1x1.7 inch
Connection: 2 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 105dB
Maximum SPL: 133dB Peak @ 1M
Horn Dispersion: H 60 x V 30 degrees
Crossover point: 1.8 KHz
Impedance: 8 Ohm
Frequency Range: 45 Hz~20 KHz
Color: Black or White
Net weight N. Weight: 37kgs
Cabinet Dimension (W x D x H): 485 x 475 x 810 mm
Packing Dimension (W x D x H): 535 x 525 x 855 mm
Combined with amplifier power Rec. Amplifier Power: 1200~1500W 8Ohm
Size & Specification:
Cabinet Dimension (W x D x H): 485 x 475 x 810 mm
Packing Dimension (W x D x H): 535 x 525 x 855 mm
Project Applications:
Project application information
