CT-12
Detailed description:

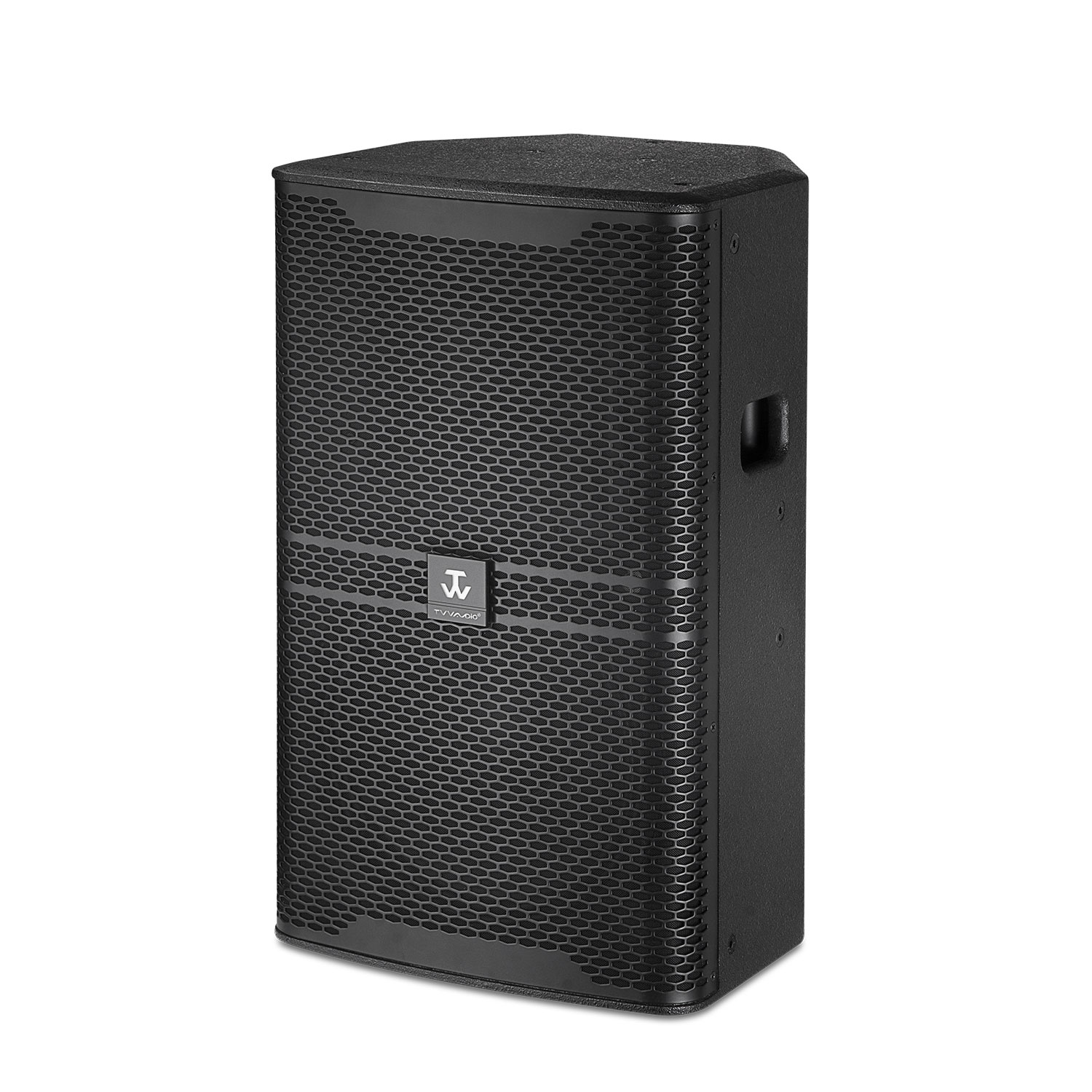

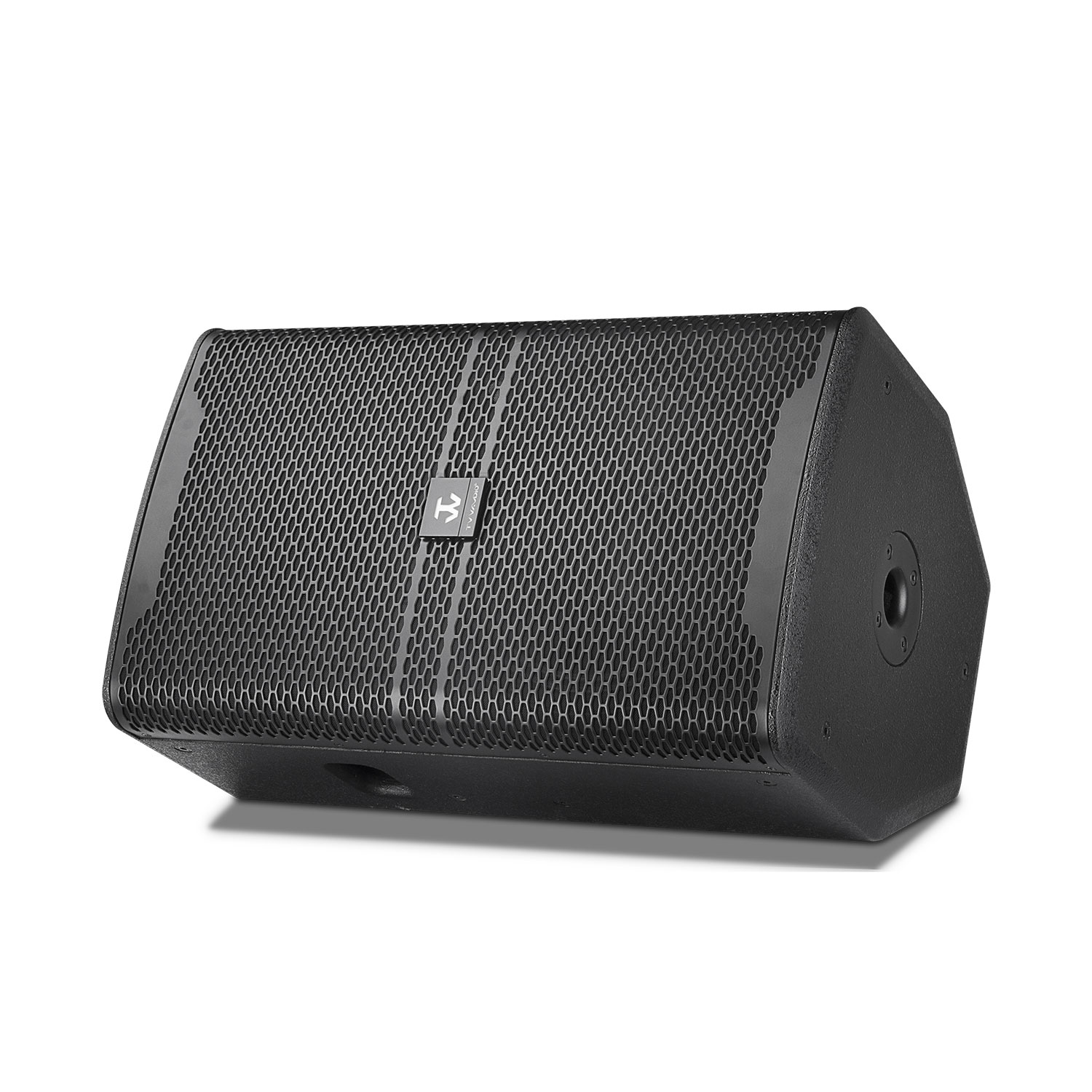

CT-12 is a high-power, high pressure design two-way entertainment engineering speaker with sweet and round sound, abundant power, and powerful low-frequency sound; High frequency is achieved through the use of titanium film treble, which is clear, delicate, and has strong penetration. Equipped with a 12 inch 400W RMS power unit and a 44 core high-frequency driver, the high-frequency horn can adjust its angle according to the needs of the occasion. It can be fixed on the wall or hung with M8 suspension rings, and the appearance color can be customized according to customer needs.
Product Parameters:
Model: CT-12
Rated Power: 400W RMS
Peak Power Program: 800W RMS
Unit configuration components: LF 12inch+HF 1.7inch

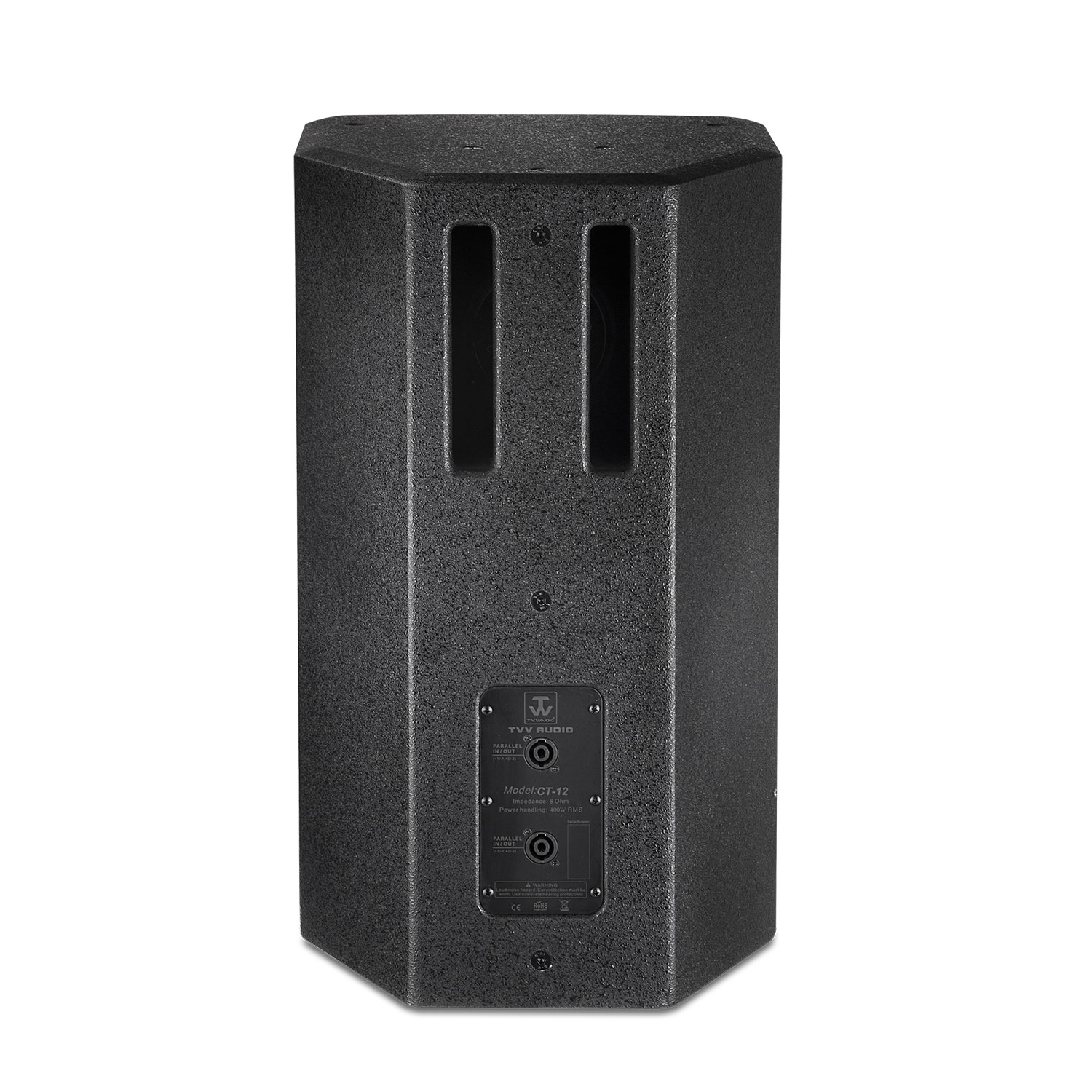

Connection: 2 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 98dB
Maximum SPL: 120dB Peak @ 1M
Horn Dispersion: H 100 x V 50 degrees
Crossover point: 1.8 KHz
Impedance: 8 Ohm
Frequency Range: 60 Hz~20 KHz
Color: Black or White
Net weight: 24kgs
Cabinet Dimension (W x D x H): 370 x 385 x 620 mm
Packing Dimension (W x D x H): 460 x 445 x 680 mm
Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm
Size & Specification:
Cabinet Dimension (W x D x H): 370 x 385 x 620 mm
Packing Dimension (W x D x H): 460 x 445 x 680 mm
