TV-12
Detailed description:

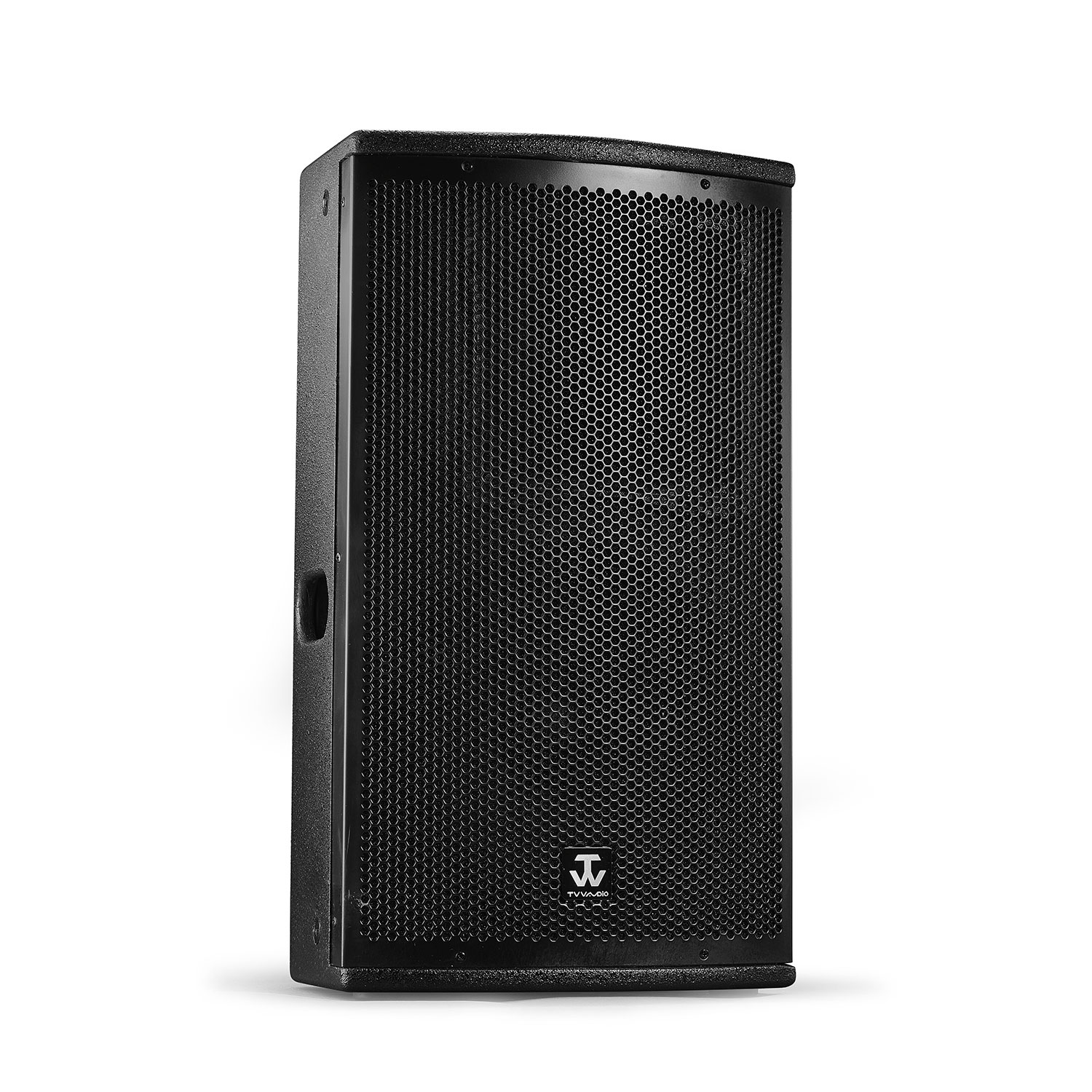

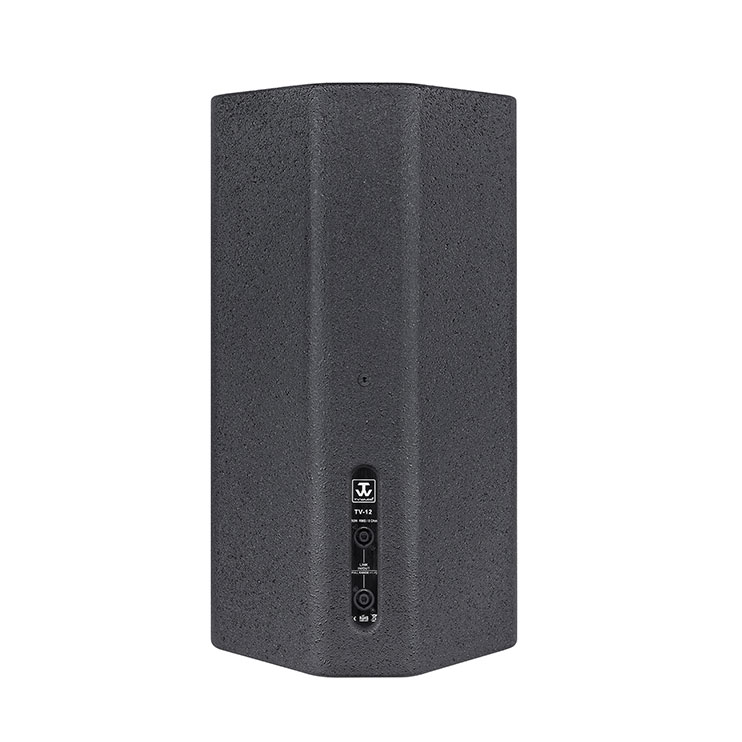

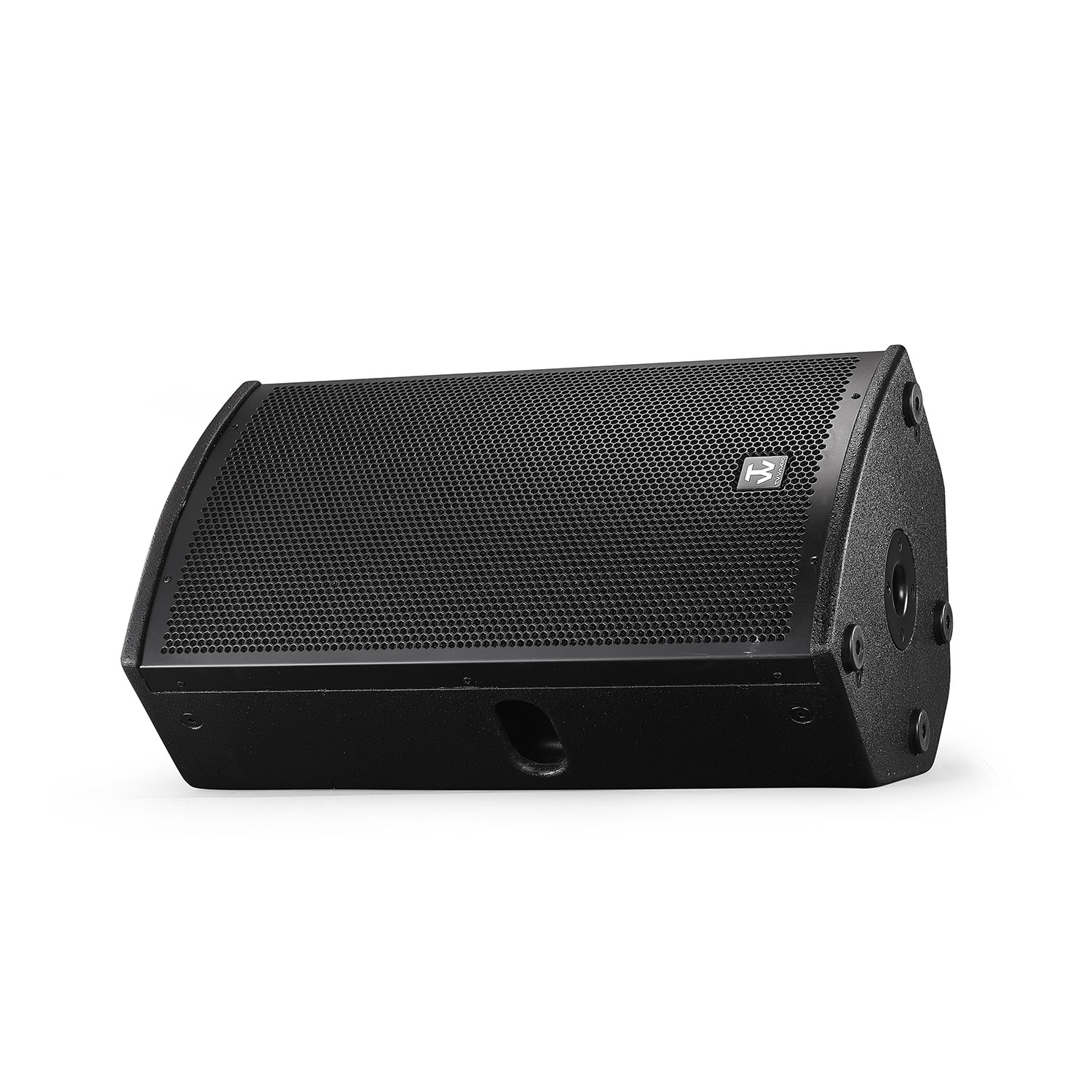

TV-12 is a professionally designed two-way speaker with a sweet and round tone, abundant power, powerful and full low-frequency sound, clear and delicate high-frequency sound, and strong penetration. The TV-12 speaker adopts a twelve inch 250W RMS power unit and a 1.7-inch high-frequency driver, which can be wall mounted or installed with M10 suspension rings. The box is treated with high-quality paint and the appearance color can be customized according to customer needs.
Product Parameters:
Model: TV-12
Rated Power: 250W RMS
Peak Power Program: 500W RMS
Unit configuration components: LF 12inch+HF 1.7inch
Connection: 2 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 94dB
Maximum SPL: 118dB Peak @ 1M
Horn Dispersion: H 90 x V 80 degrees
Crossover point: 1.8 KHz
Impedance: 8 Ohm
Frequency Range: 55 Hz~20 KHz
Color: Black or White
Net weight: 20kgs
Cabinet Dimension (W x D x H): 373 x 340x 663 mm
Packing Dimension (W x D x H): 449 x 415 x 723 mm
Combined with amplifier power Rec. Amplifier Power: 450~650W 8Ohm
Size & Specification:
Cabinet Dimension (W x D x H): 373 x 340x 663 mm
Packing Dimension (W x D x H): 449 x 415 x 723 mm
Project Applications:
Project application information
