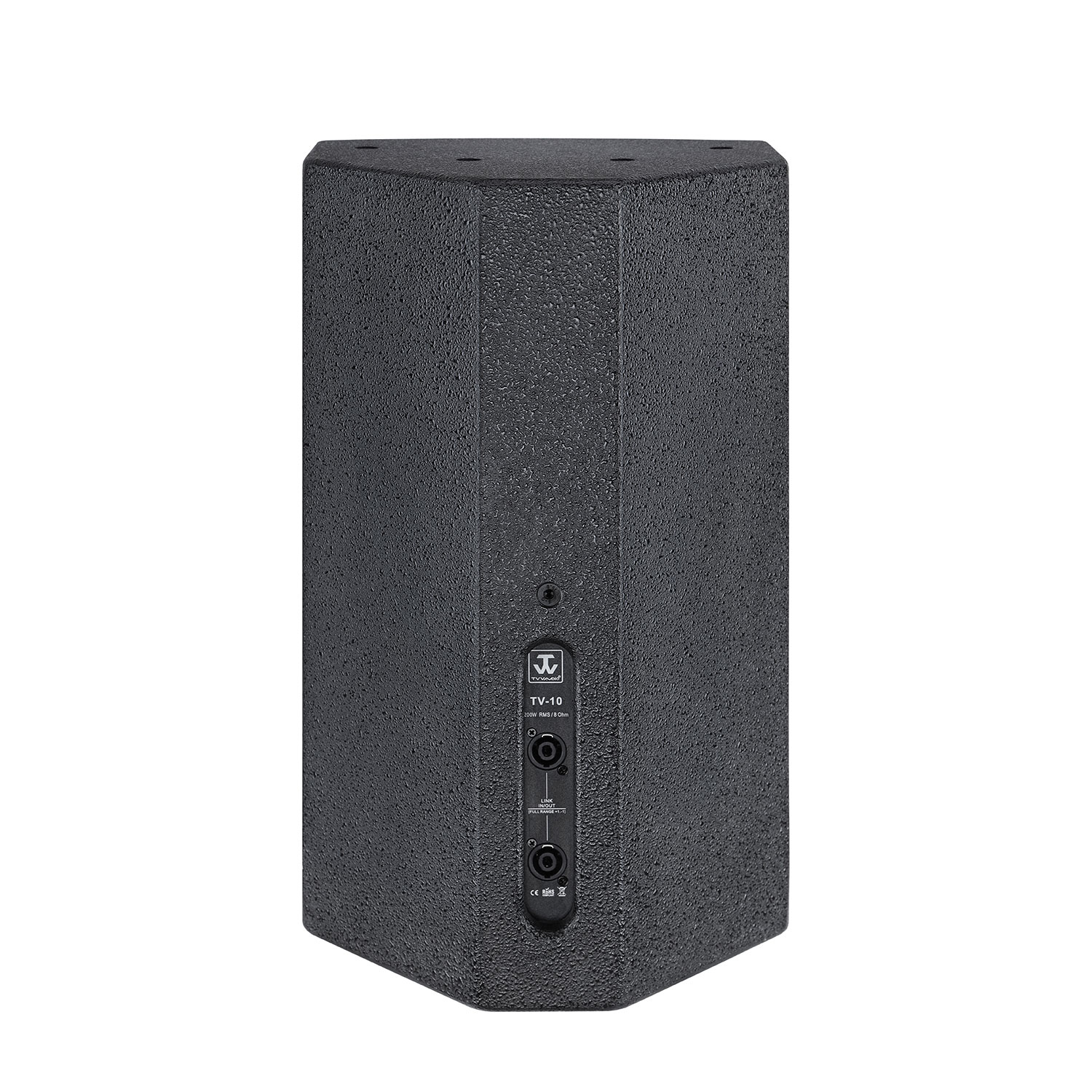

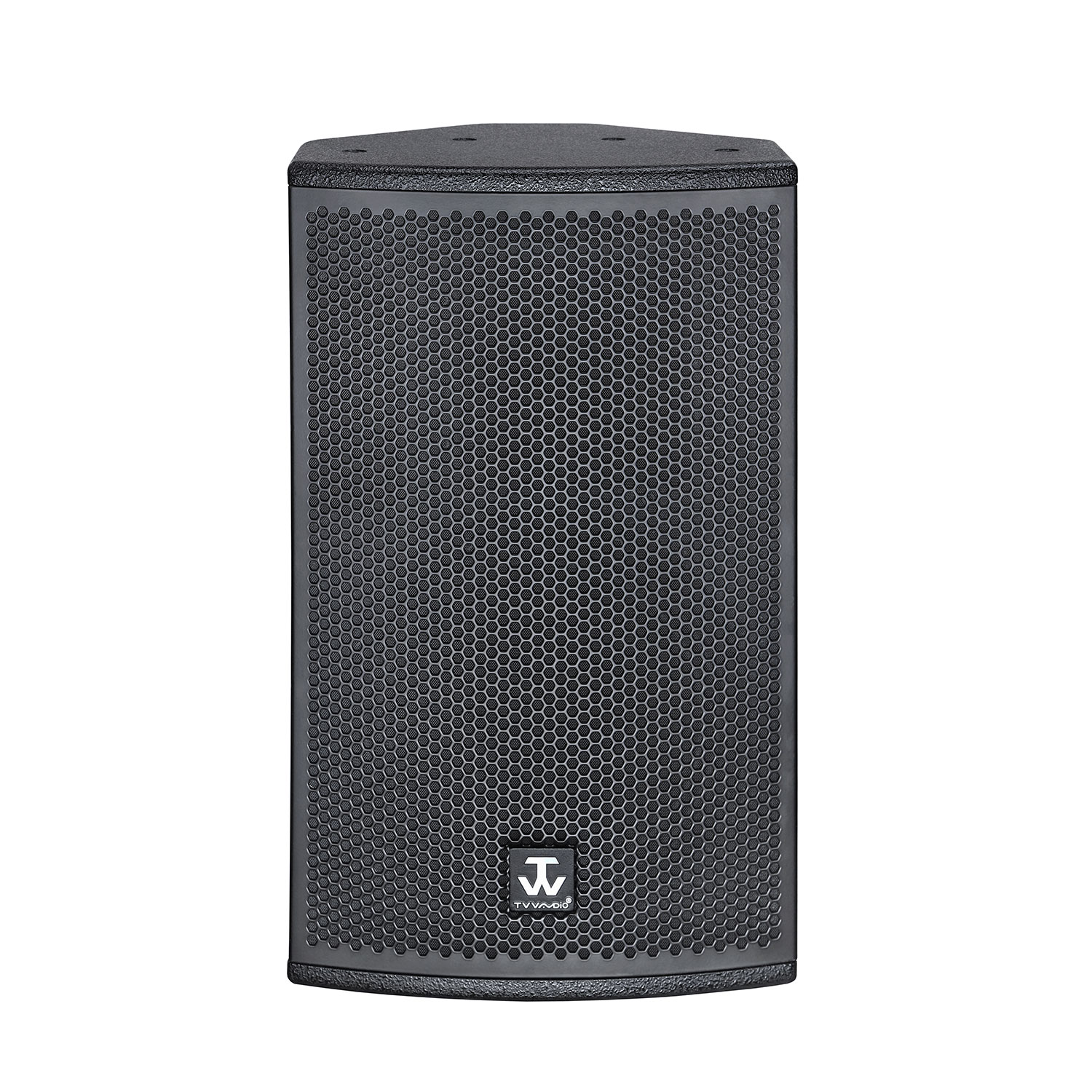

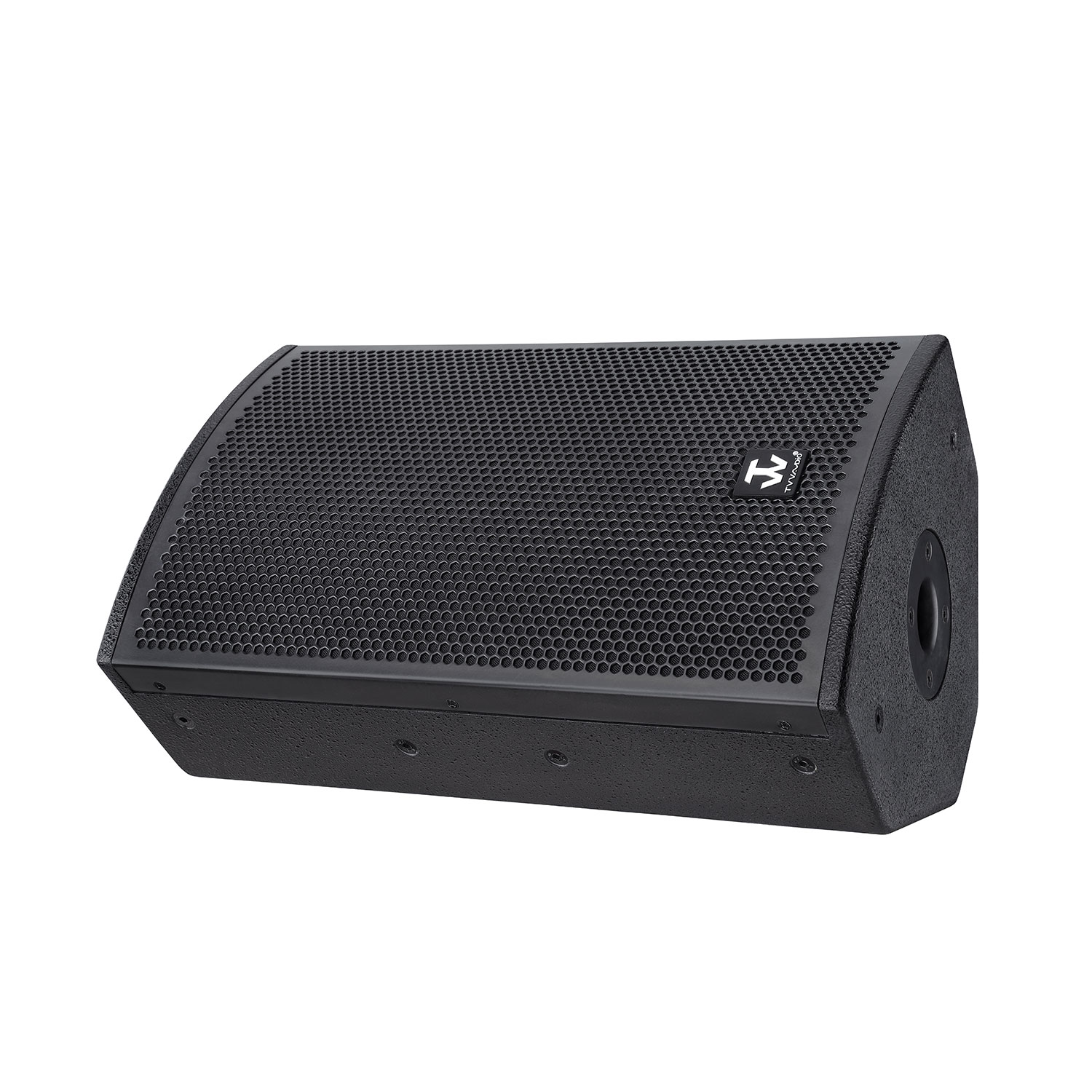

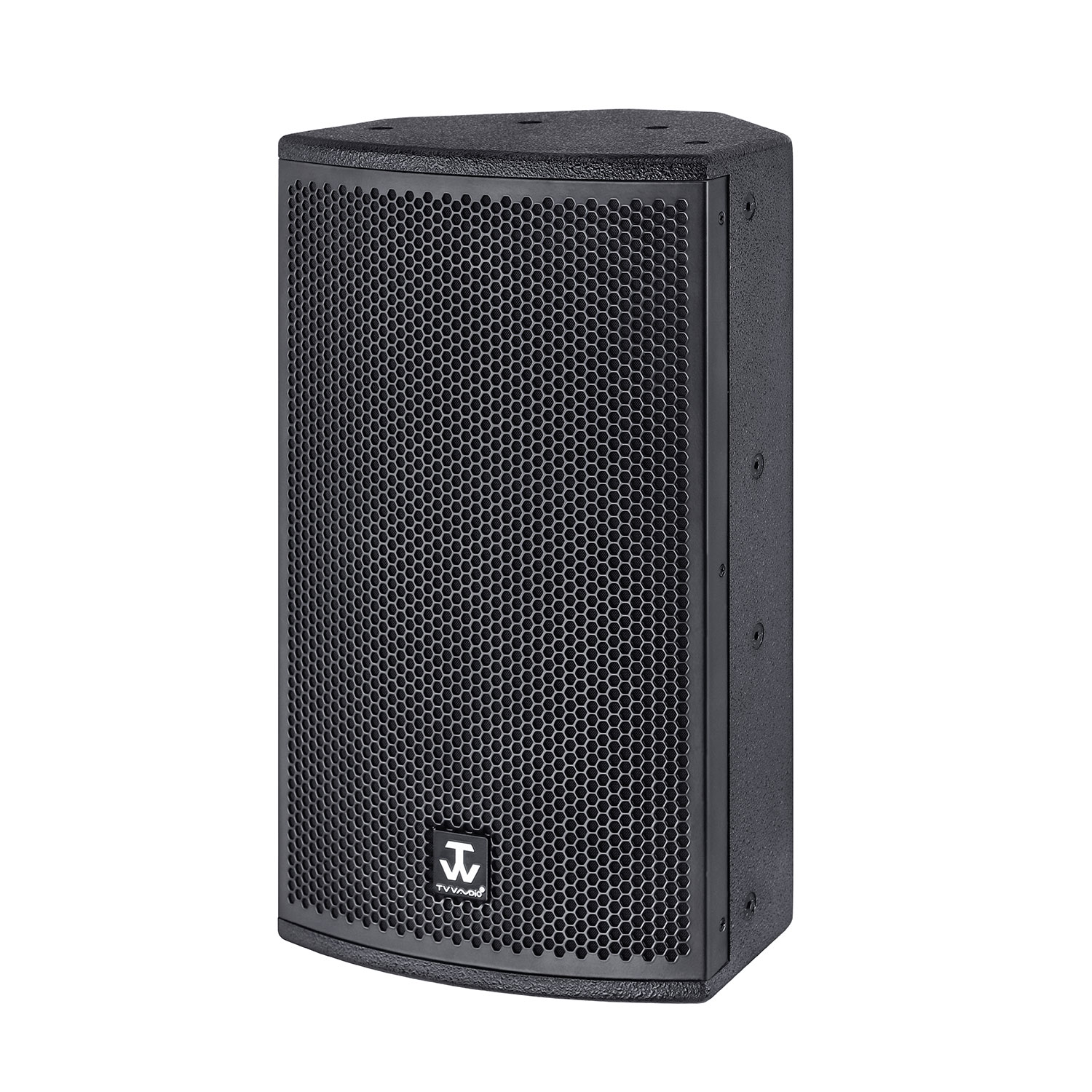

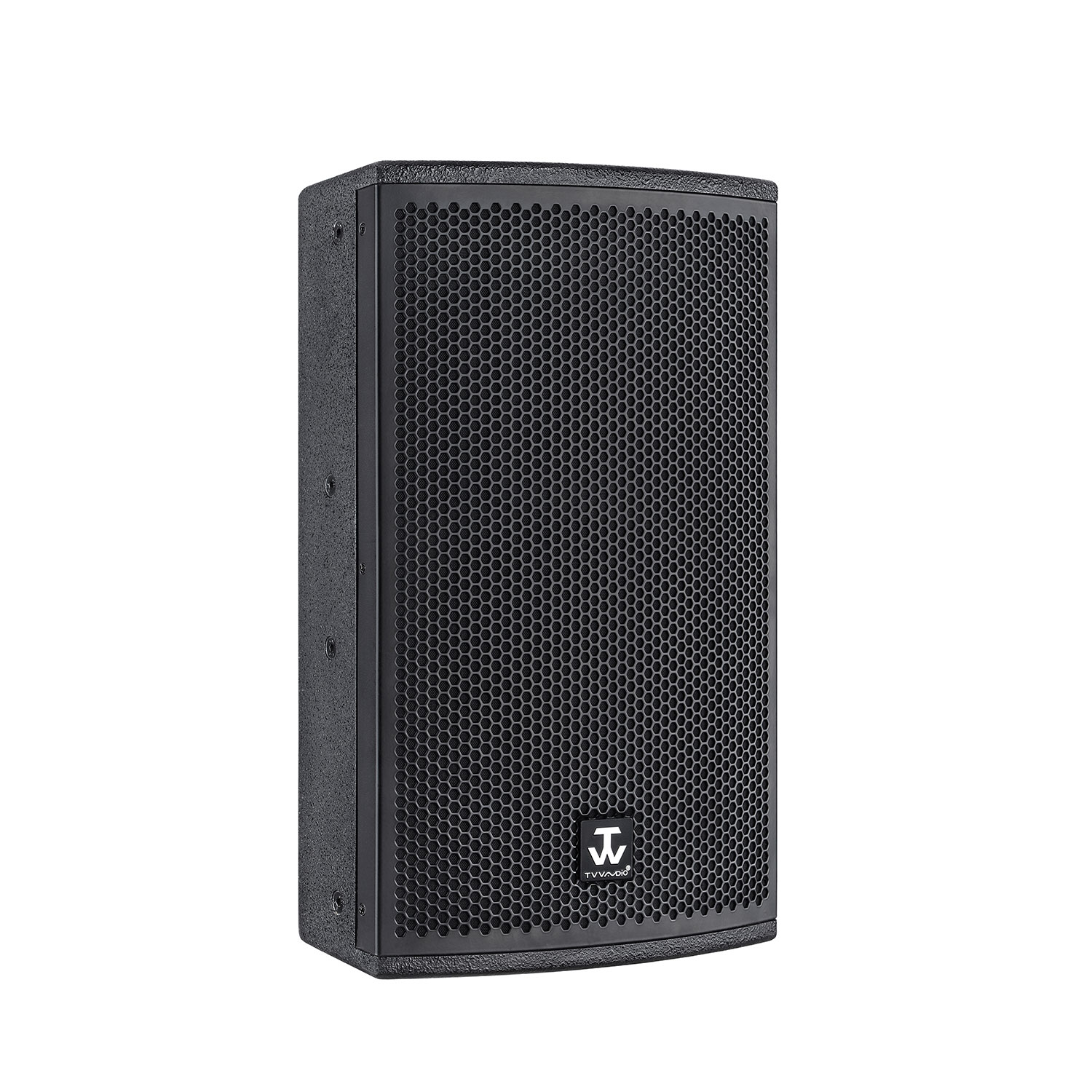

TV-10
Detailed description:
TV-10 is a professionally designed two-way speaker with sweet and round sound, clear and delicate high frequencies, and strong penetration. The TV-10 speaker adopts a ten inch 200W RMS power unit and a 1.3-inch high-frequency driver, which can be wall mounted or hung with M8 suspension rings. The box is treated with high-quality paint and the appearance color can be customized according to customer needs.
Product Parameters:
Model: TV-10
Rated Power: 200W RMS
Peak Power Program: 400W RMS
Unit configuration components: LF 10 inch+HF 1.3 inch
Connection: 2 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 93dB
Maximum SPL: 115dB Peak @ 1M
Horn Dispersion: H 90 x V 80 degrees
Crossover point: 1.8 KHz
Impedance: 8 Ohm
Frequency Range: 65 Hz~20 KHz
Color: Black or White
Net weight: 13kgs
Cabinet Dimension (W x D x H): 318 x 258x 524 mm
Packing Dimension (W x D x H): 373 x 313x 584 mm
Combined with amplifier power Rec. Amplifier Power: 350~450W 8Ohm
Size & Specification:
Cabinet Dimension (W x D x H): 318 x 258x 524 mm
Packing Dimension (W x D x H): 373 x 313x 584 mm
Project Applications:
Project application information
