TV-8
Detailed description:

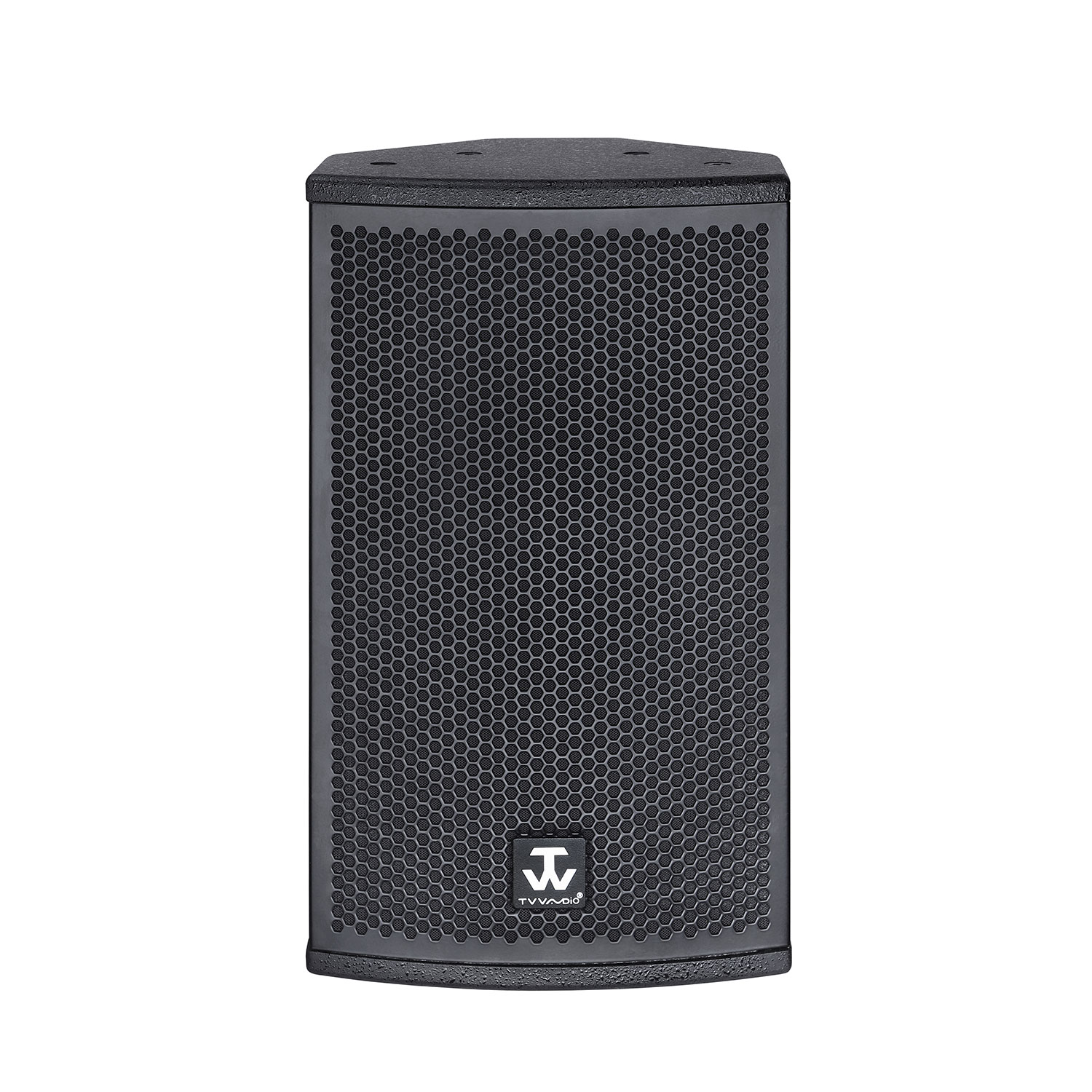

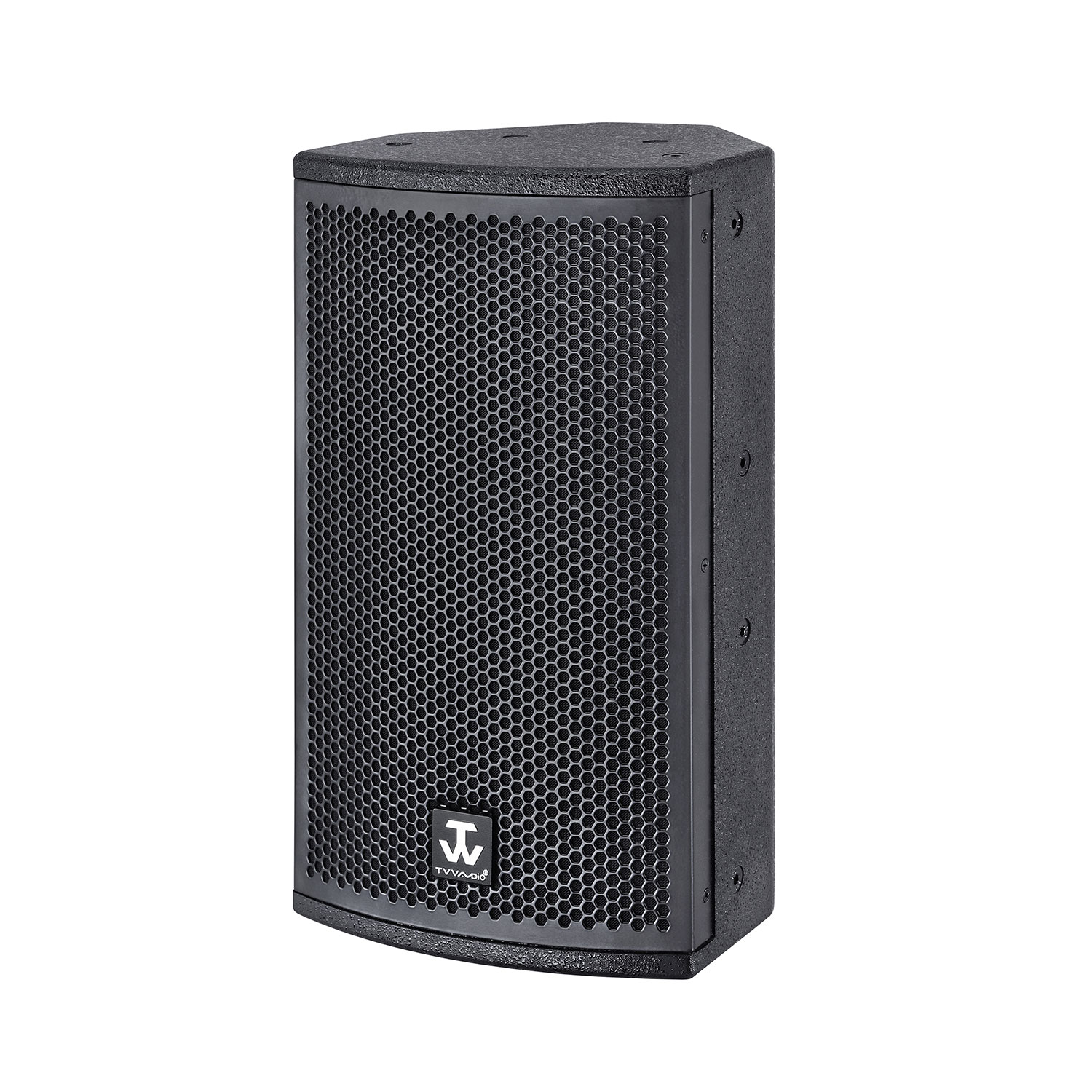

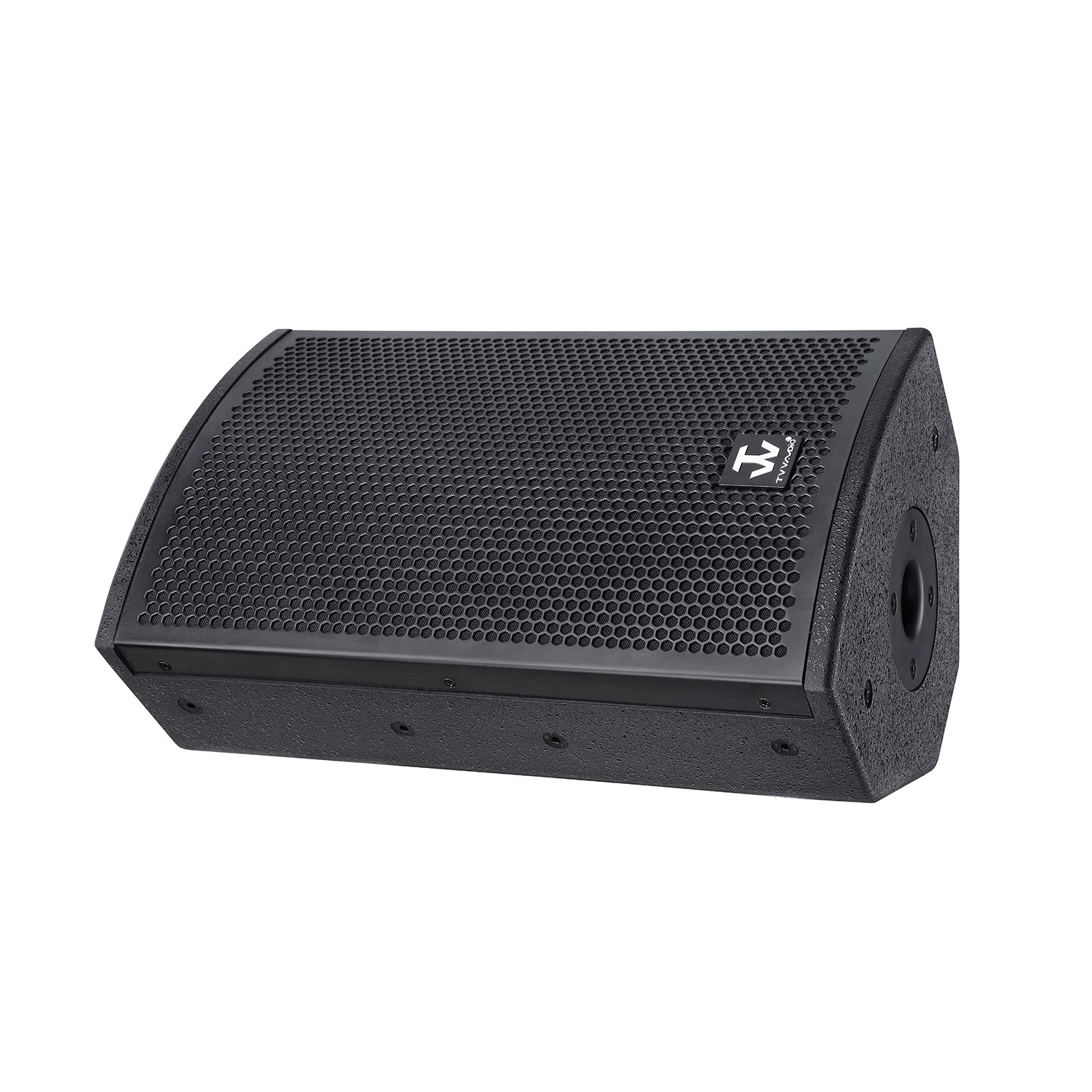

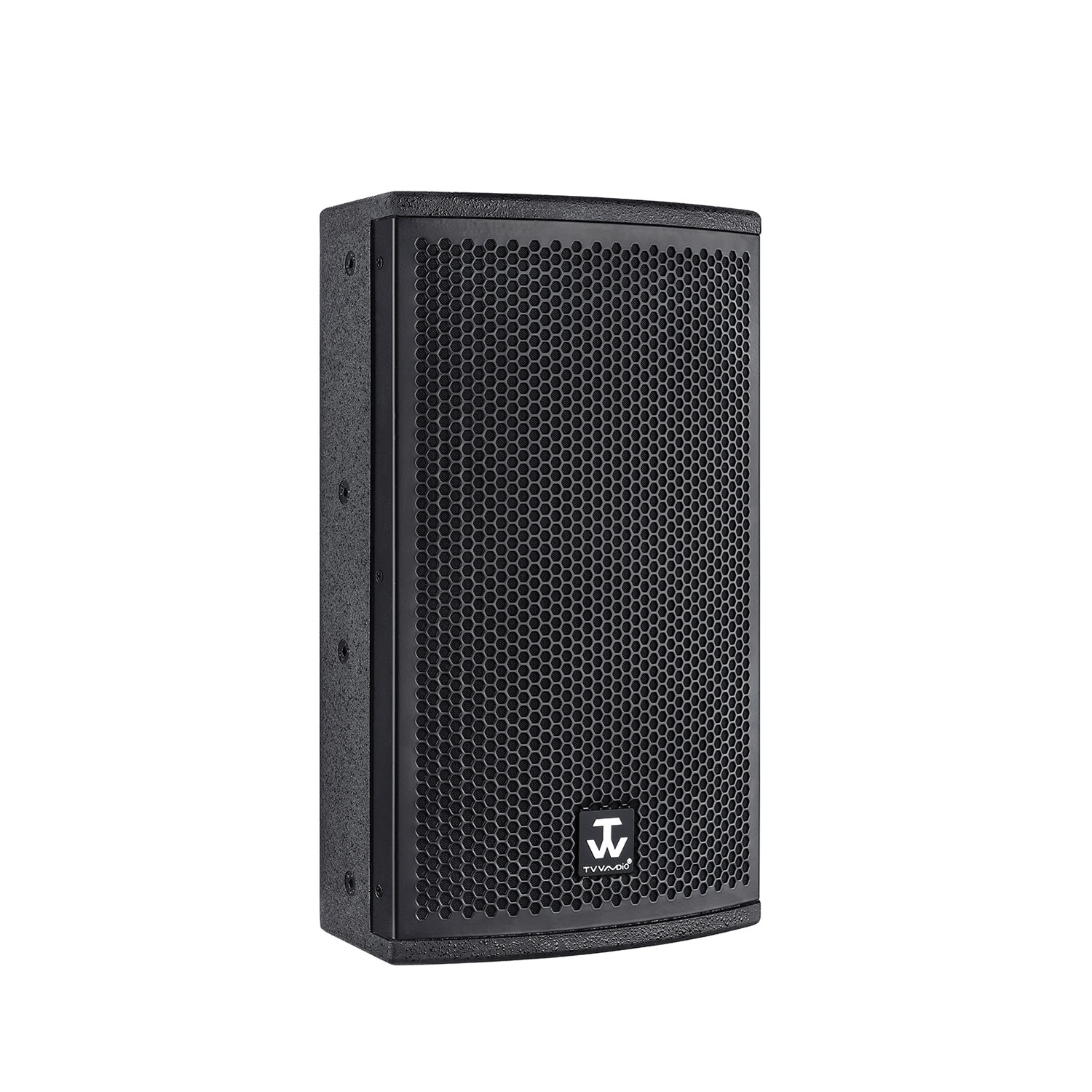

TV-8 is a professionally designed two-way speaker with a sweet and round tone, abundant power, powerful and full low-frequency sound, clear and delicate high-frequency sound, and strong penetration. The TV-8 speaker adopts an eight inch 150W unit and a 1.3-inch high-frequency driver, which can be wall mounted or hung with M8 suspension rings. The box is treated with high-quality wear-resistant paint, and the appearance color can be customized according to customer needs.
Product Parameters:
Model: TV-8
Rated Power: 150W RMS
Peak Power Program: 300W RMS
Unit configuration components: LF 8inch+HF 1.3inch

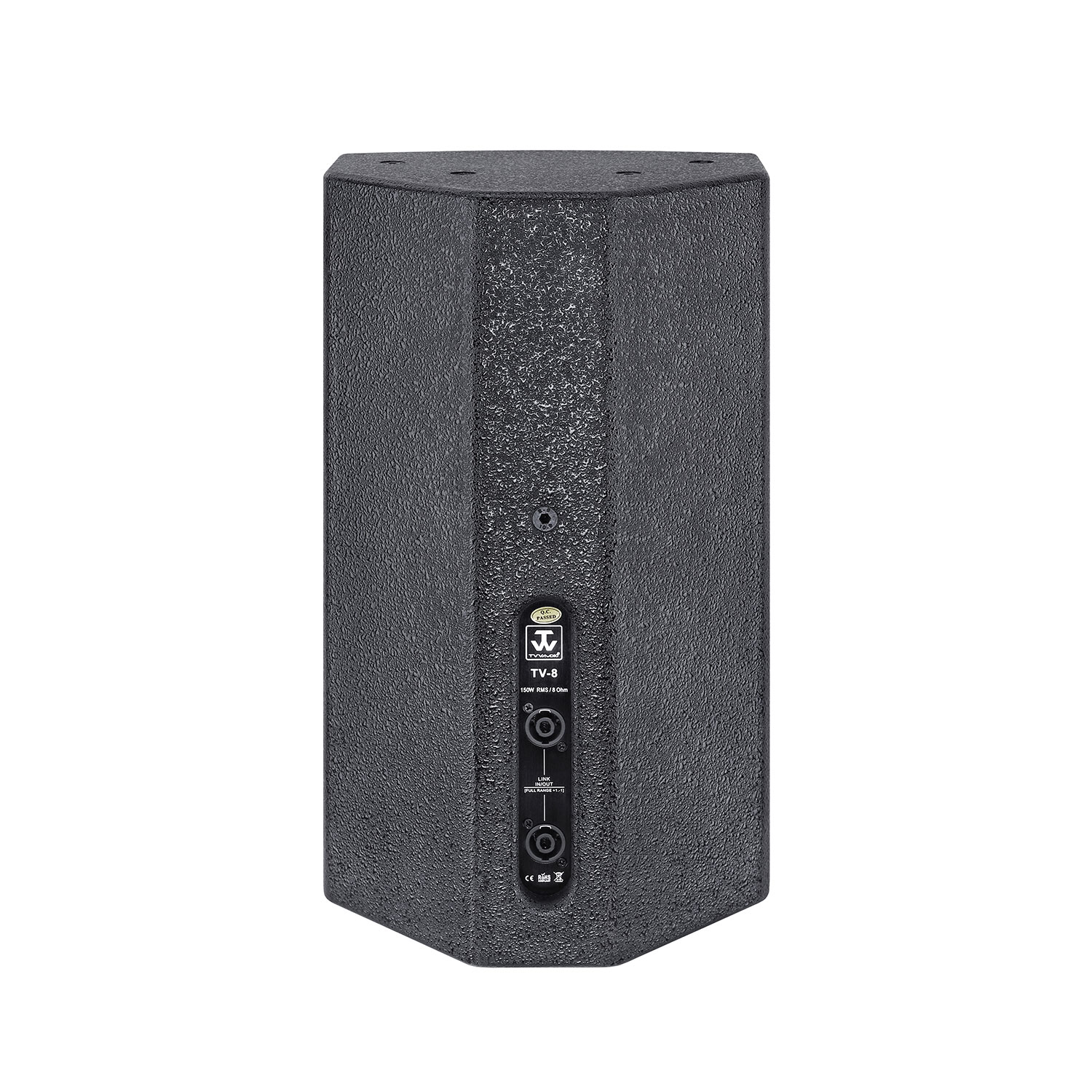

Connection: 2 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 88dB
Maximum SPL: 110dB Peak @ 1M
Horn Dispersion: H 90 x V 80 degrees
Crossover point: 1.8 KHz
Impedance: 8 Ohm
Frequency Range: 60 Hz~20 KHz
Color: Black or White
Net weight N. Weight: 10kgs
Cabinet Dimension (W x D x H): 272 x 220 x 463 mm
Packing Dimension (W x D x H): 327 x 275 x 523 mm
Combined with amplifier power Rec. Amplifier Power: 350~450W 8Ohm
Size & Specification:
Cabinet Dimension (W x D x H): 272 x 220 x 463 mm
Packing Dimension (W x D x H): 327 x 275 x 523 mm
Project Applications:
Project application information
