TV-6
Detailed description:

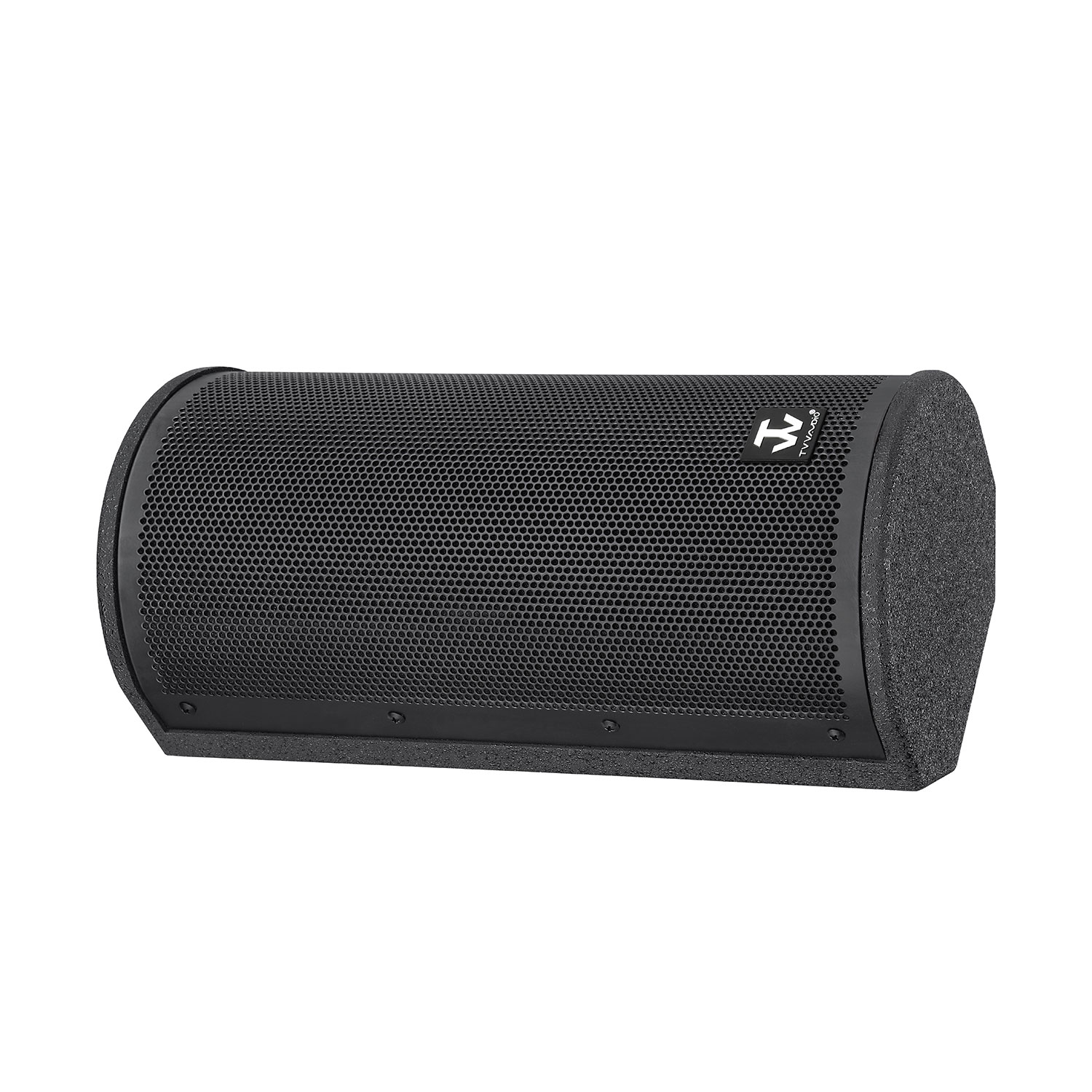

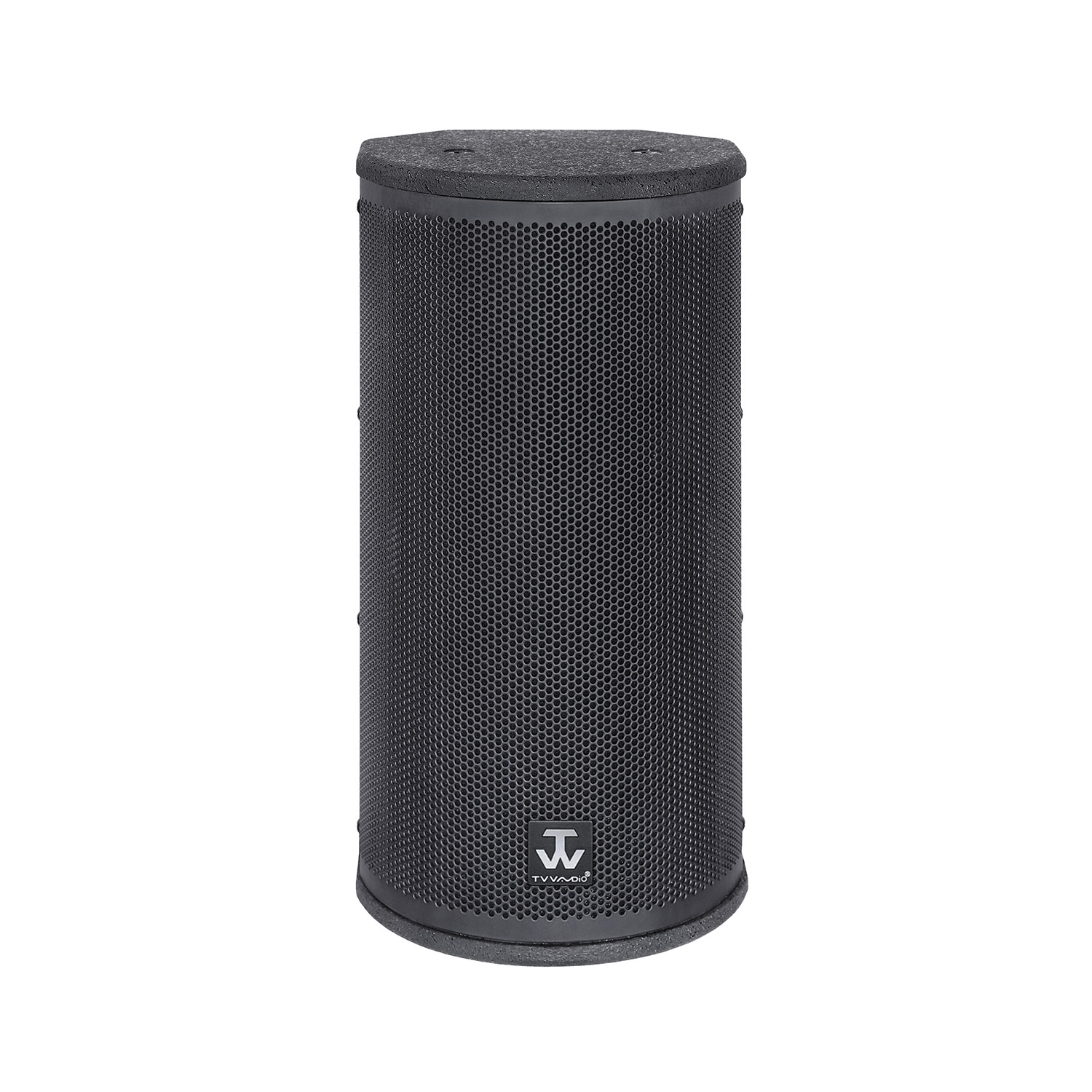

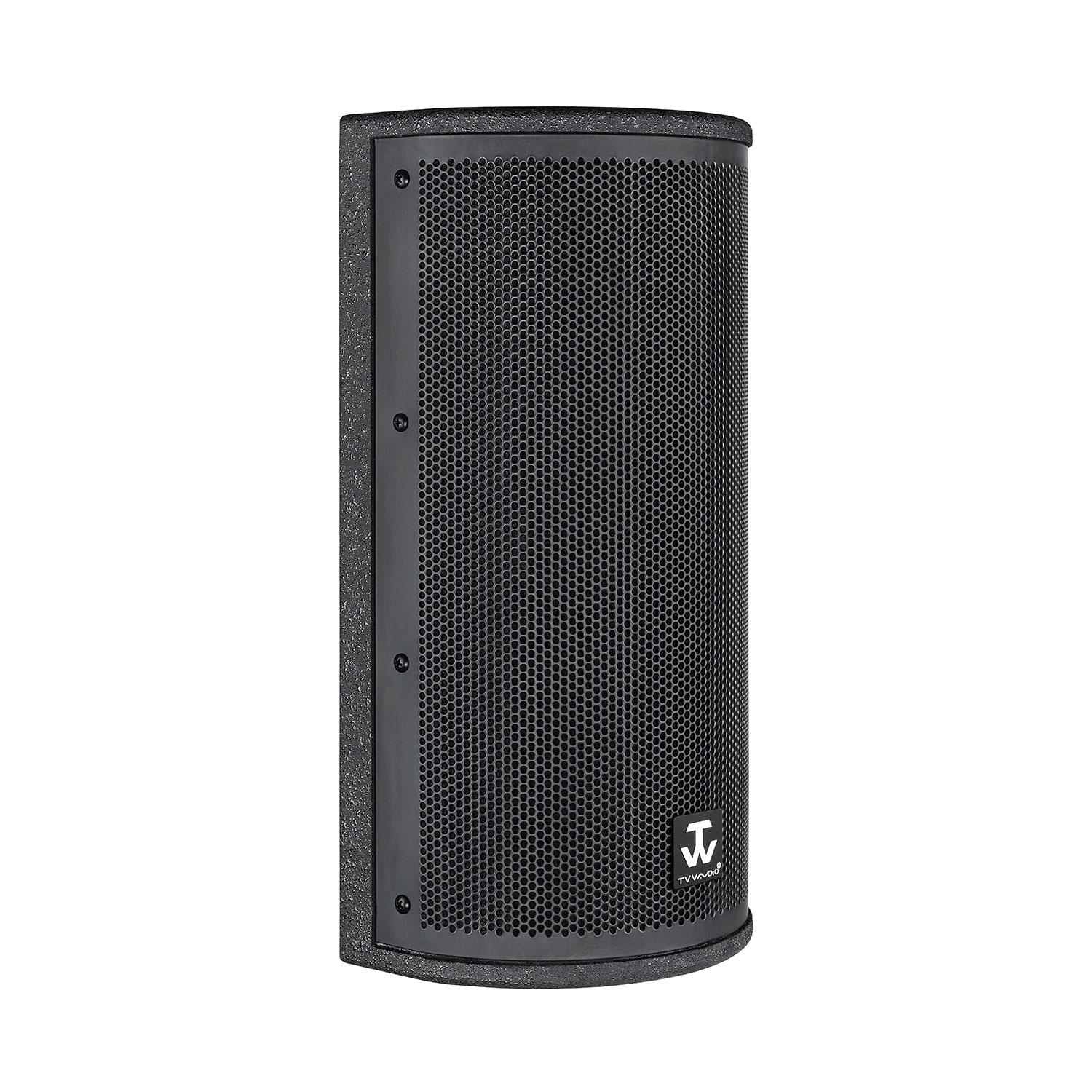

TV-6 is a 2-way full range loudspeaker, designed for main professional use for conference as side/rear fills. TV-6 is using with 1PC 6.5inch woofer, plus 2pcs 3inch cone tweeter. It offers an exceptional dynamic reproduction and impressive power, complex passive filtering ensuring very high fidelity and reliability. It can be mounted with functional wall bracket, M8 Eye-bolt, the cabinet is coated with durable paint, and color can be customized.
Product Parameters:
Model: TV-6
Rated Power: 150W RMS
Peak Power Program: 300W RMS
Unit configuration components: LF 6.5inch+HF 2x3inch

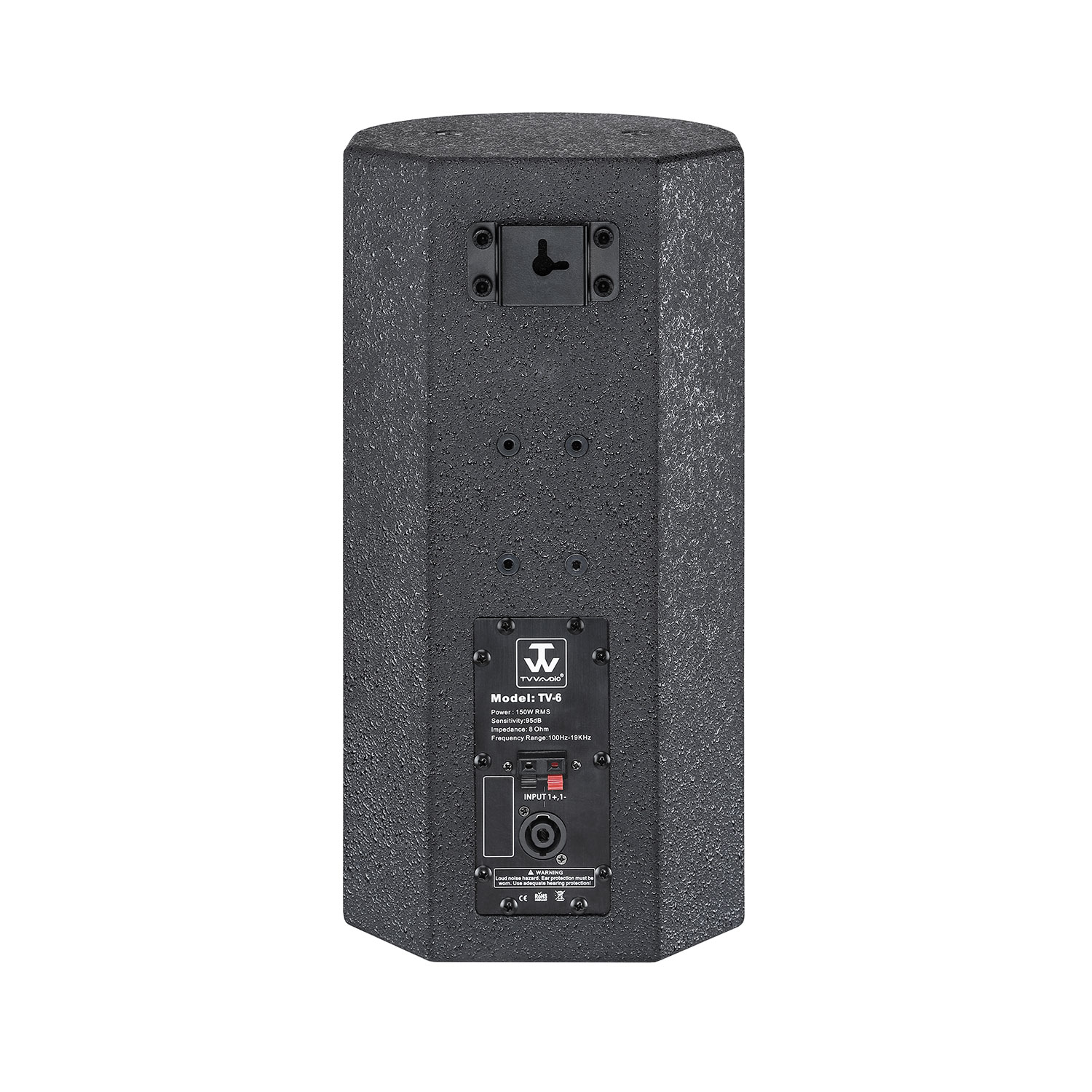

Connection: 1 x Neutrik Speakon (4 Pins 1+1-)
Sensitivity (1W @ 1M): 89dB
Maximum SPL: 112dB Peak @ 1M
Horn Dispersion: H 90 x V 80 degrees
Crossover point: 1.65 KHz
Impedance: 8 Ohm
Frequency Range: 55 Hz~20 KHz
Color: Black or White
Net weight N. Weight: 8kgs
Cabinet Dimension (W x D x H): 206 x 180 x 405 mm
Packing Dimension (W x D x H): 246 x 220 x 445 mm
Combined with amplifier power Rec. Amplifier Power: 450~650W 8Ohm
Size & Specification:
Project Applications:
TV-6 application projects: Conference Room, DJ Monitor, Conference halls, Portable PA System, Bars, Shopping mall etc.
