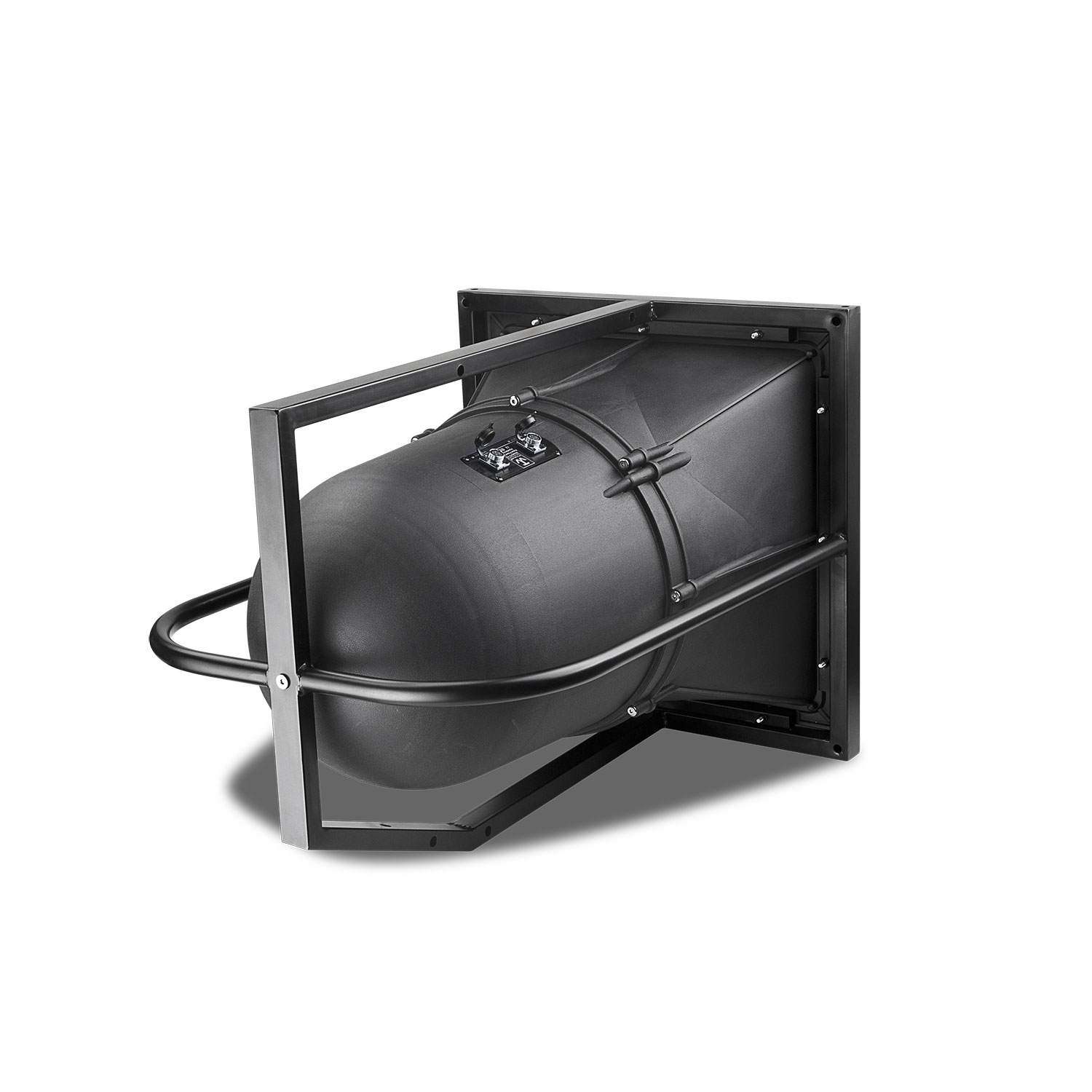

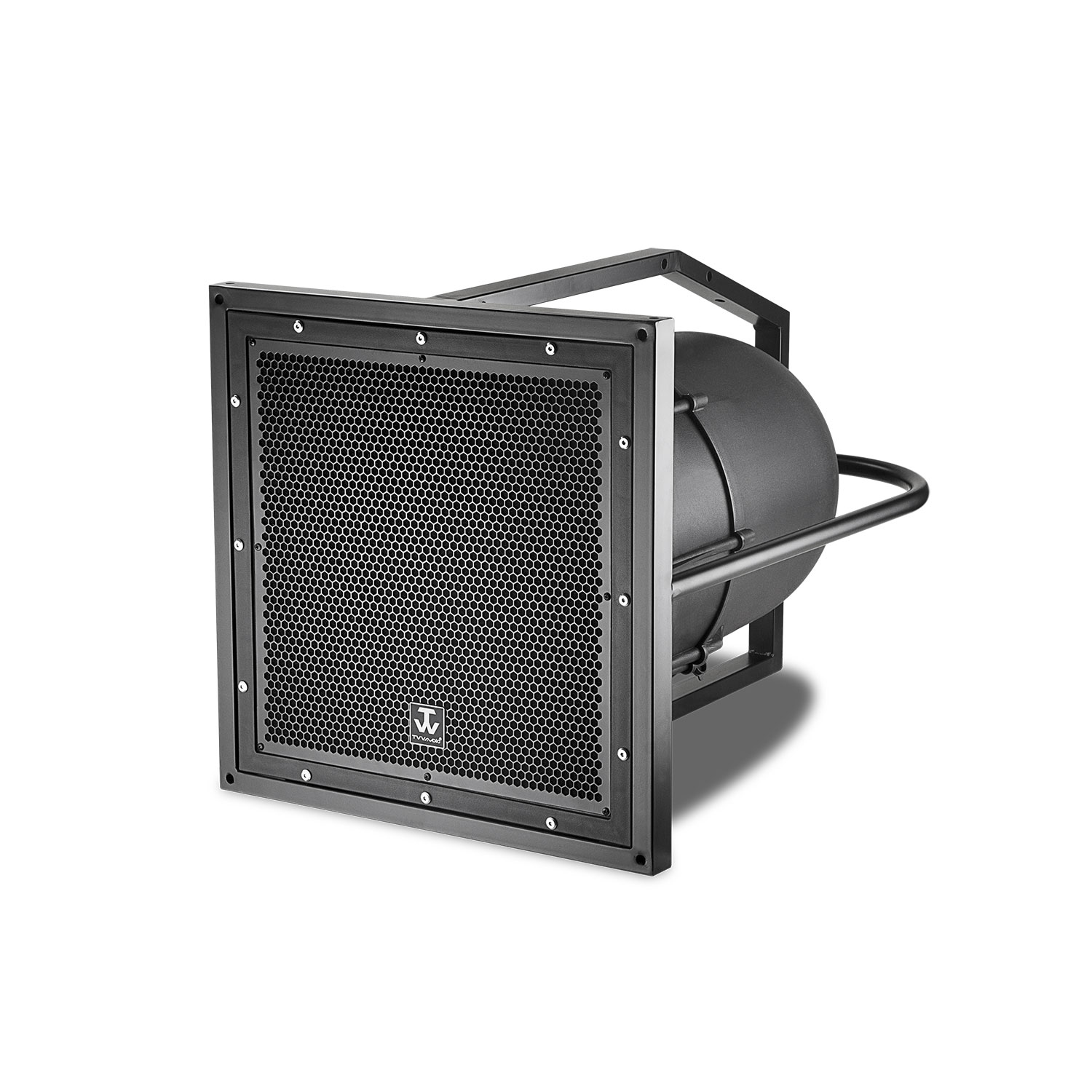

HT-122
Detailed description:
HT-122 is a professional all-weather, high-power, long-range dual frequency horn box that can be customized into constant voltage or constant resistance modes. Composed of one 12 inch low-frequency unit and one 1.7-inch high-frequency unit. The high pitched sound is installed on a directional horn that is coaxial with the low pitched sound, forming a simulated coaxial design with the low pitched sound, effectively improving the transmission distance of sound.
Product features: High sound pressure, high clarity, and long transmission distance. Can form a linear array, all-weather design, using aviation composite materials, high strength, light weight, and good protective performance. It has acid and alkali resistance, salt spray resistance, anti-corrosion, waterproof and dustproof properties, can withstand high-intensity impact and vibration, and can adapt to various harsh climates and environments.
Product Parameters:
Technical Specifications
Rated Power: 300W RMS
Peak Power Program: 600W RMS
Unit configuration components: LF 1x12 inch+HF 1 x 1.7 inch
Connection method: 2 x Waterproof connectors (1+1/)
Sensitivity (1W @ 1M): 99dB
Maximum SPL: 128dB Peak @ 1M
Impedance: 8 Ohm/100V
Frequency Range: 70 Hz~20KHz
Horn Dispersion: V 40 x H 60 degrees
Color: Black/White
Net weight: 27kgs
Product size Cabinet Size: (W x H x D): 576x576x760mm
Packing Dimension (W x D x H): 670 x 640 x 850mm
Combined with amplifier power Rec. Amplifier Power: 650~850W 8Ohm
Size & Specification:
Product size Cabinet Size: (W x H x D): 576x576x760mm
Packing Dimension (W x D x H): 670 x 640 x 850mm
Project Applications:
Project application information
