HT-110
Detailed description:

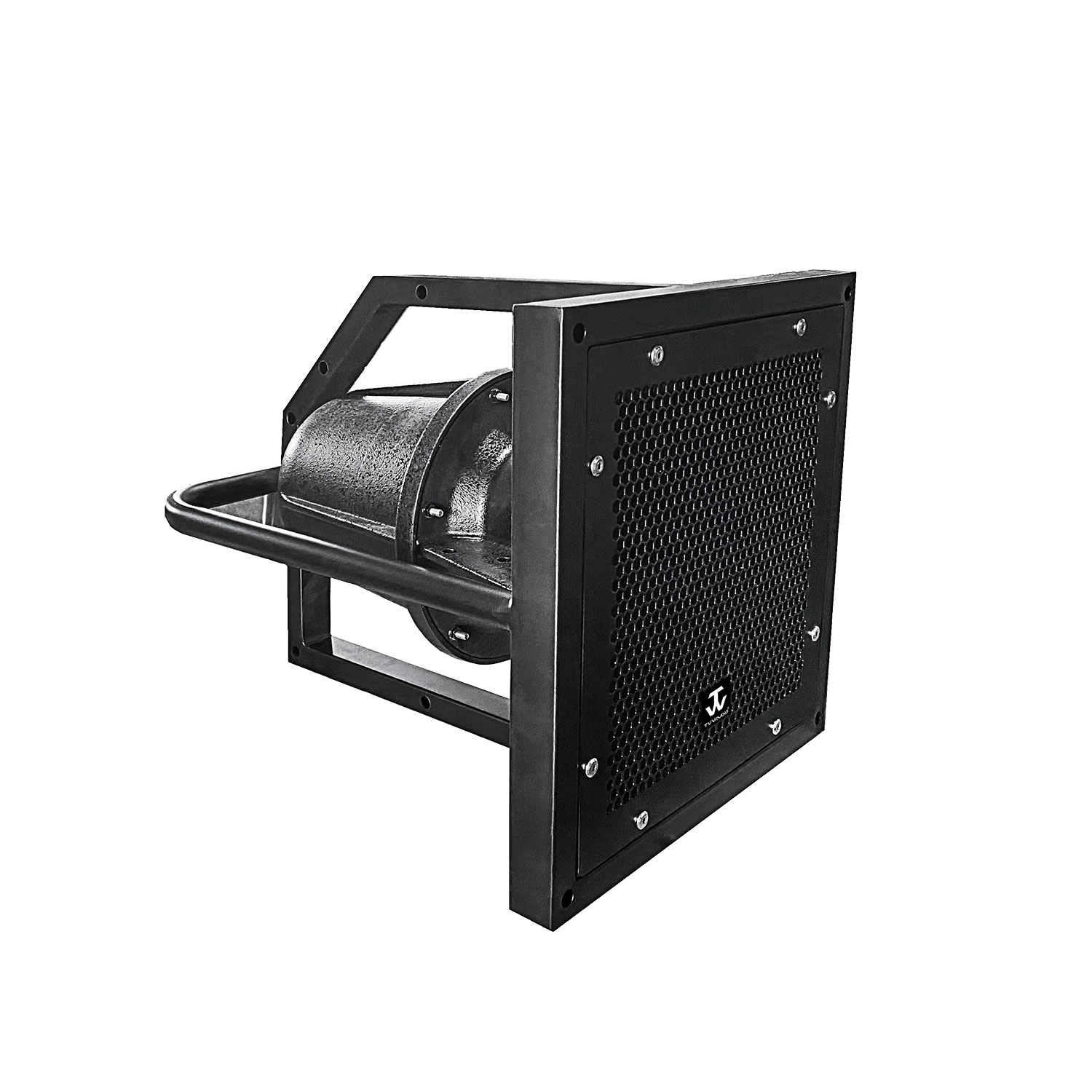

HT-110 is a professional all-weather, high-power, long-range dual frequency horn box that can be customized into constant voltage or constant resistance modes. Composed of one 10 inch low-frequency unit and one 1.7-inch high-frequency unit. The high pitched sound is installed on a directional horn that is coaxial with the low pitched sound, forming a simulated coaxial design with the low pitched sound, effectively improving the transmission distance of sound.
Product features: High sound pressure, high clarity, and long transmission distance. Can form a linear array, all-weather design, using aviation composite materials, high strength, light weight, and good protective performance. It has acid and alkali resistance, salt spray resistance, anti-corrosion, waterproof and dustproof properties, can withstand high-intensity impact and vibration, and can adapt to various harsh climates and environments.
Product Parameters:
Technical Specifications
Rated Power: 250W RMS
Peak Power Program: 500W RMS
Unit configuration components: LF 1x10 inch+HF 1x1.7 inch
Connection method: 2 x Waterproof Connector (1+1-)
Sensitivity (1W @ 1M): 96dB
Maximum SPL: 120dB Peak @ 1M
Horn Dispersion: V 20 x H 40 degrees
Crossover point: 1.8KHz
Impedance: 8 Ohm/100V
Frequency Range: 70Hz~18KHz
Color: Black/White
Net weight: 24kgs
Product Size Cabinet Size: (W x H x D): 450X450X630
Packing Dimension (W x H x D): 500 x 500 x 680mm
Combined with amplifier power Rec. Amplifier Power: 450~650W @ 8Ohm
Size & Specification:
Product Size Cabinet Size: (W x H x D): 450X450X630
Packing Dimension (W x H x D): 500 x 500 x 680mm
Project Applications:
Project application information
