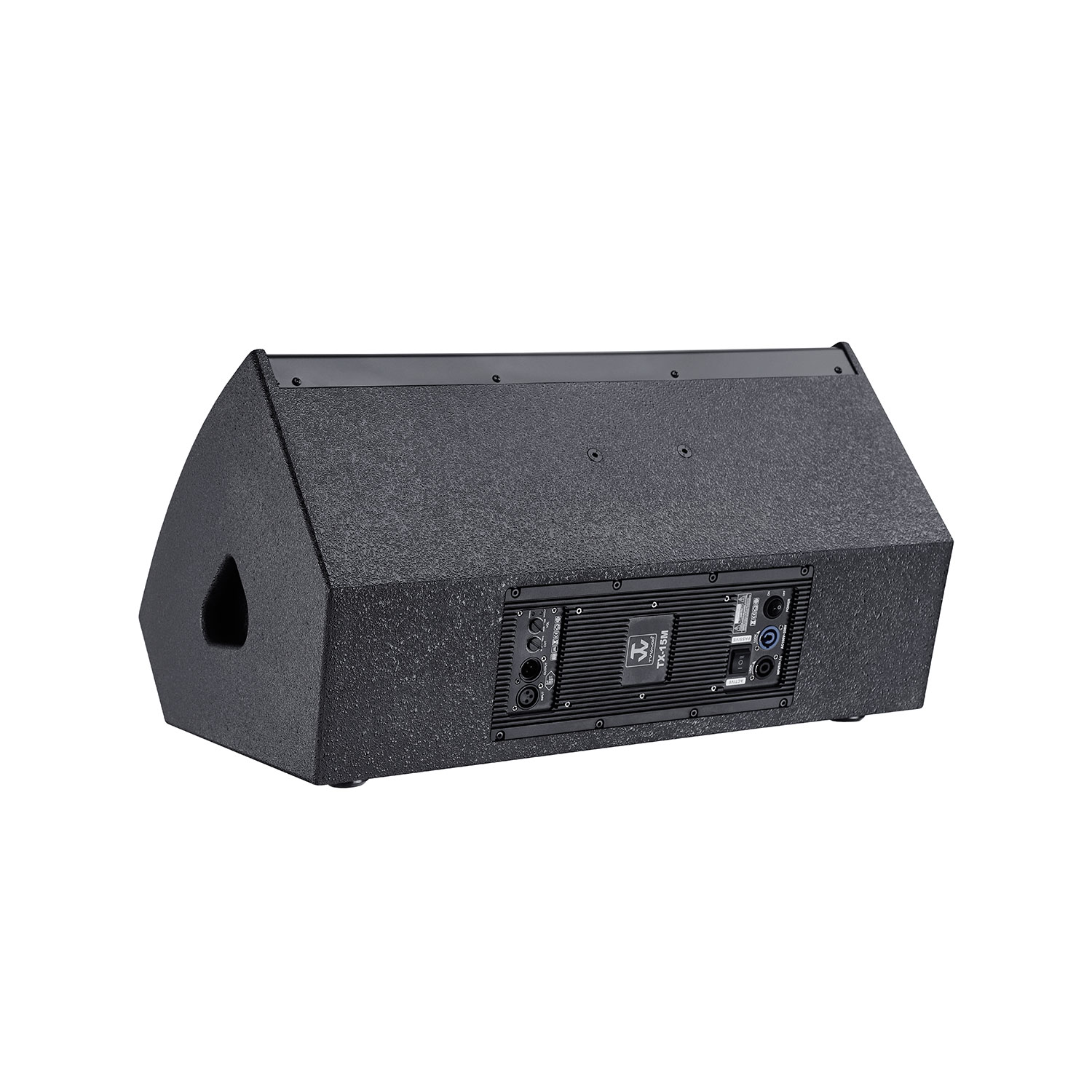

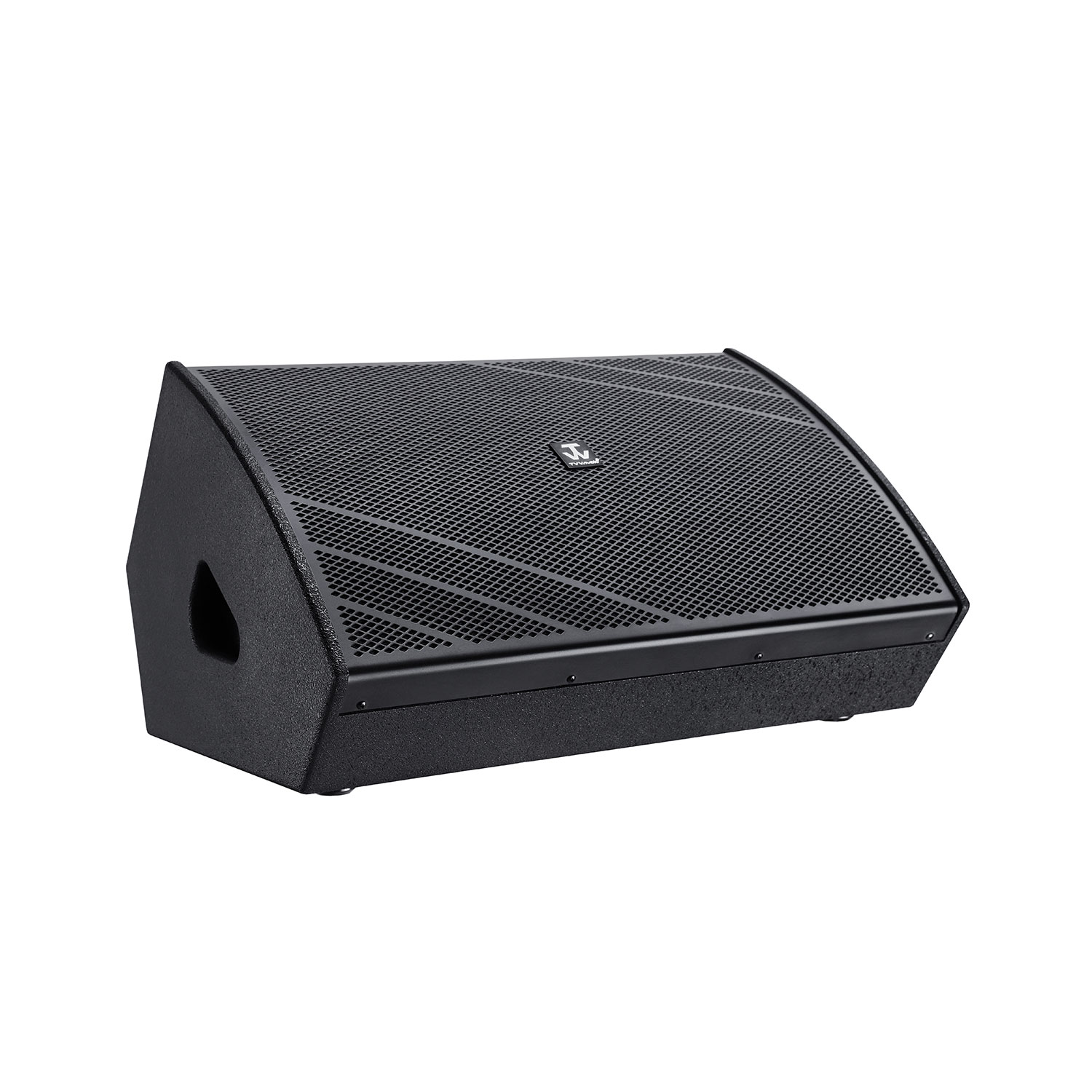

TX-15M
Detailed description:
TX-15M is a high-power professional stage two-way monitoring speaker, designed in both passive and active versions, with a sensitivity of up to 129dB. It has a sweet and round tone, abundant power, and powerful low-frequency sound. The high-frequency sound is made of titanium film, which is clear, delicate, and has strong penetration. The TX-15M is equipped with professional 506 hanging points, which can be fixed on the wall or hung for installation. The box is treated with wear-resistant paint, and the appearance color and passive style can be customized according to customer needs.
Product Parameters:
Model: TX-15M
Rated Power: 500W RMS
Peak Power Program: 1000W RMS
Unit configuration components: LF 15inch+HF 1.7inch
Connection method: NL4MP 1+1-/XLR Connectors
Sensitivity (1W @ 1M): 102dB
Maximum SPL: 129dB Peak @ 1M
Horn Dispersion: H 60 x V 90 degrees
Crossover point: 1.8 KHz
Impedance: 8 Ohm
Frequency Range: 45 Hz~20 KHz
Color: Black or White
Net weight: 26kgs
Cabinet Dimension (W x D x H): 668 x 443 x 395mm
Packing Dimension (W x D x H): 718 x 493 x 445mm
Power module with power amplifier: 650W~850W @ 8Ohm
Size & Specification:
Cabinet Dimension (W x D x H): 668 x 443 x 395mm
Packing Dimension (W x D x H): 718 x 493 x 445mm
Project Applications:
Project application information
